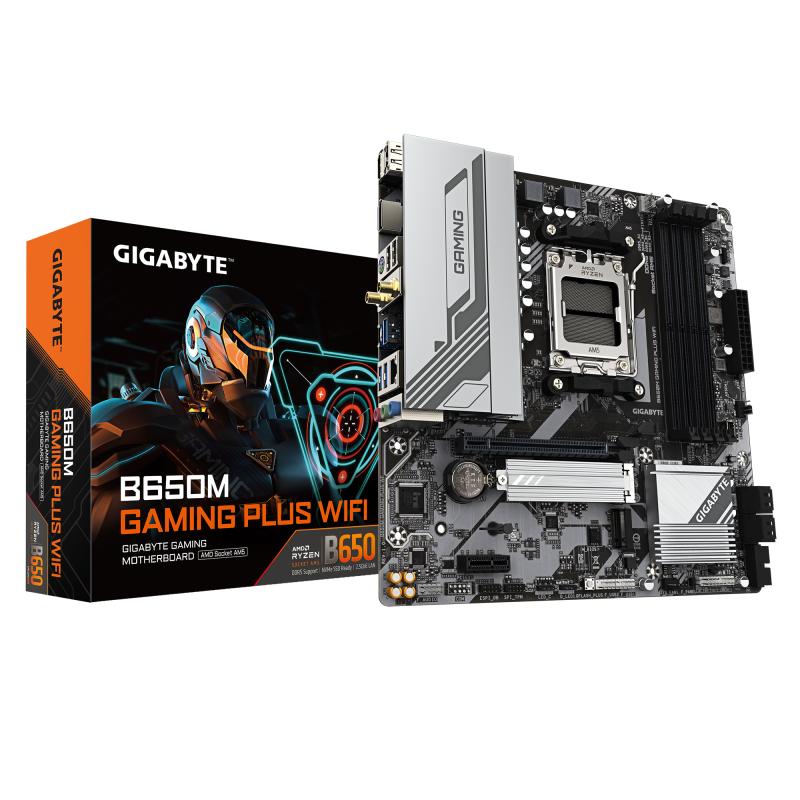

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x

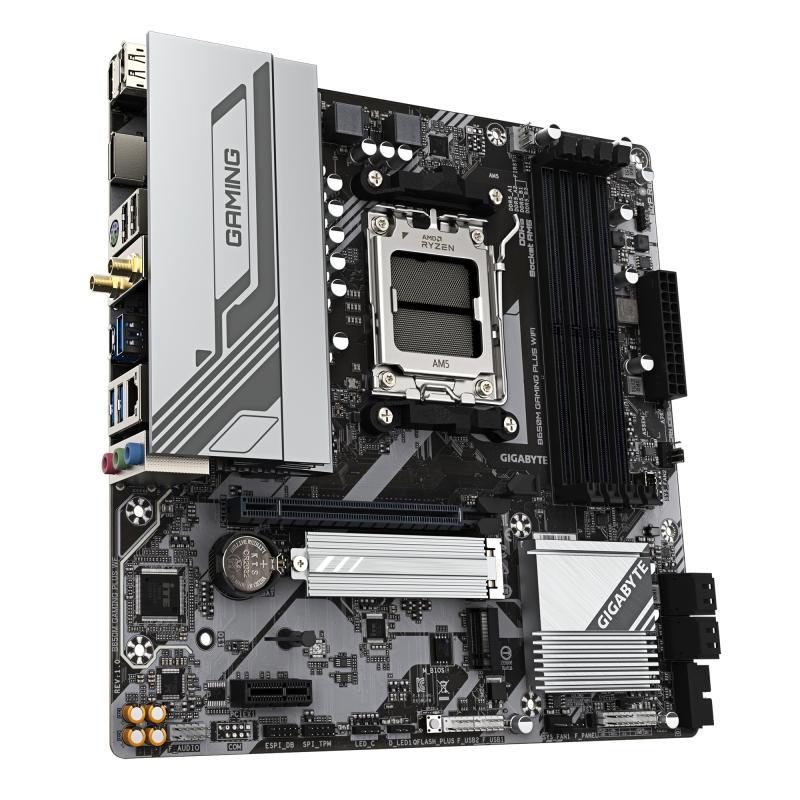

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x - Image 3

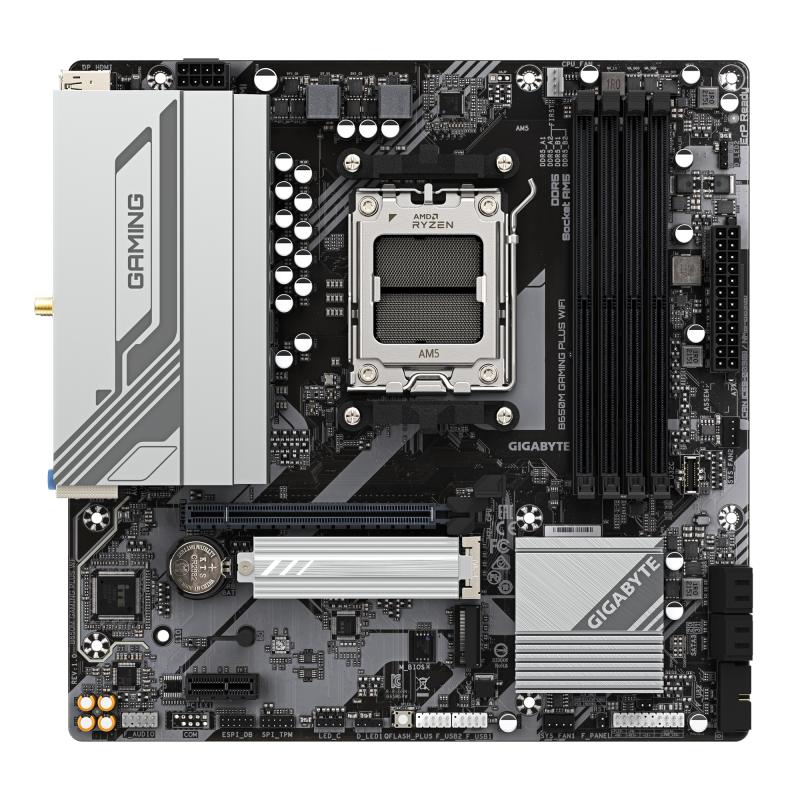

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x - Image 4

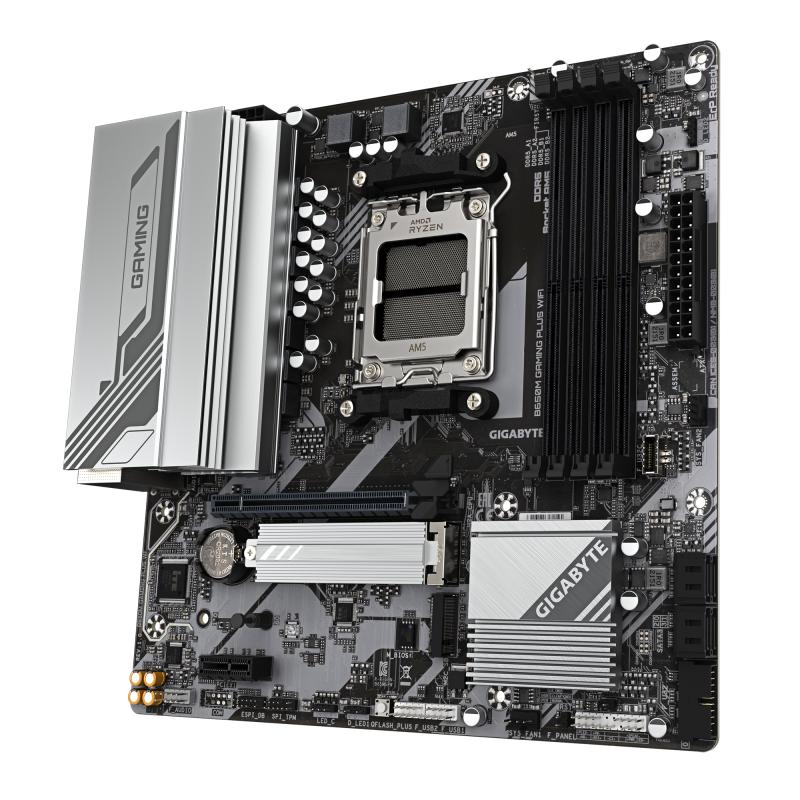

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x - Image 5

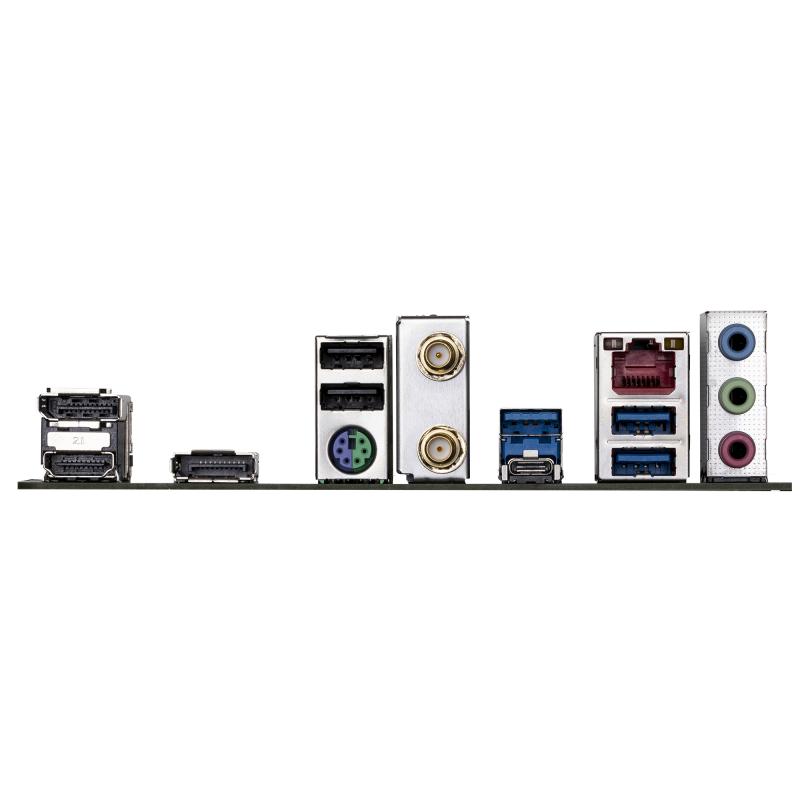

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x - Image 6
Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x - Image 7
Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x - Image 8

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x

SKU: B650M GAMING PLUS WF
Producator: Gigabyte
Favorite

De ce să alegi LEADtech.ro?

Plata online
cu cardul
vezi detalii
Comenzi predate curierului in aceeasi zi pana in ora 15:00 vezi detalii
Retur in 14 zile
vezi detalii
Ai o intrebare?
Suna la 0756824557
vezi detalii
Disponibilitate:

În stoc

699,99 lei 799,99 lei

În stoc

in stoc
Credit module tbi bank 3.4.1

157.38 Lei x 4 rate

Favorite
Compara

Descriere

Placa de Baza GIGABYTE B650M GAMING PLUS WIFI AM5, 4x DDR5, 2x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

SKU: B650M GAMING PLUS WF Categorie:

Specificații

PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

Yes
Onboard-CPU

No
RAID support

Yes
Component for

PC
DisplayPort version

1.4
Memory channels

Dual-channel
Top Wi-Fi standard

Wi-Fi 6E (802.11ax)
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.1
Bluetooth version

5.3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3
Headphone outputs

1
Processor manufacturer

AMD
Microphone in

Yes
USB 2.0 ports quantity

2
Depth

244 mm
WLAN controller model

Realtek RTL8852CE
Weight

1.44 kg
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0
Audio output channels

7.1 channels
PCI Express x1 (Gen 3.x) slots

1
DisplayPorts quantity

2
Line-in

Yes
Audio Chip

Realtek ALC897
PCI Express x16 (Gen 4.x) slots

1
Supported storage drive types

HDD & SSD
Number of M.2 (M) slots

2
Cooling type

Passive
HDCP

Yes
Screws included

Yes
Package depth

268 mm
VGA (D-Sub) ports quantity

0
Parallel processing technology support

Not supported
DVI-D ports quantity

0
DirectX version

12.0
Maximum resolution

4096 x 2160 pixels
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Package height

68 mm
Model Chipset

B650
Gaming

Da
Format

Micro-ATX (mATX)
Soclu Procesor

Socket AM5
Tip Memorie

DDR5
Numar sloturi memorie

4
Memorie maxima

256 GB
Tip slot interfata grafica

PCIe 4.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Da
BLUETOOTH

Da
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

2
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
USB 2.0 connectors

2
USB 3.2 Gen 2 (3.1 Gen 2) connectors

0
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
Number of chassis fan connectors

2
EPS power connector (8-pin)

Yes
PS/2 ports quantity

1
Motherboard form factor

micro ATX
Motherboard chipset family

AMD
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Clear CMOS jumper

Yes
Width

244 mm
Supported memory types

DDR5-SDRAM
Maximum internal memory

256 GB
Maximum internal memory per slot

64 GB
Number of HDDs supported

4
Front panel connector

Yes
TPM connector

Yes
RGB LED pin header

Yes
WiFi-AP antenna jack

2
Ethernet interface type

2.5 Gigabit Ethernet
LAN controller

Realtek RTL8125
Power source type

ATX
2nd M.2 largest key size

22110
2nd M.2 highest PCI Express generation

4.0
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Height

35 mm
Antenna included

Yes
Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software
Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III
ECC сompatibility

Non-ECC
Number of storage drives supported

6
Package width

270 mm
USB 3.2 Gen 1 (3.1 Gen 1) connectors

2
RAID levels

0, 1, 10
Processor socket

Socket AM5
Supported processor sockets

Socket AM5
Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
PC health monitoring

Fan, Temperature, Voltage
Motherboard chipset

AMD B650
Number of EPS power connectors (8-pin)

1
Number of CPU fan connectors

1
1st M.2 highest PCI Express generation

4.0
Number of RGB LED pin headers

3
1st M.2 largest key size

2580
Supported memory clock speeds

8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Product colour

Dark brown
Package weight

1.53 kg
Producator

GIGABYTE
Garantie

36
