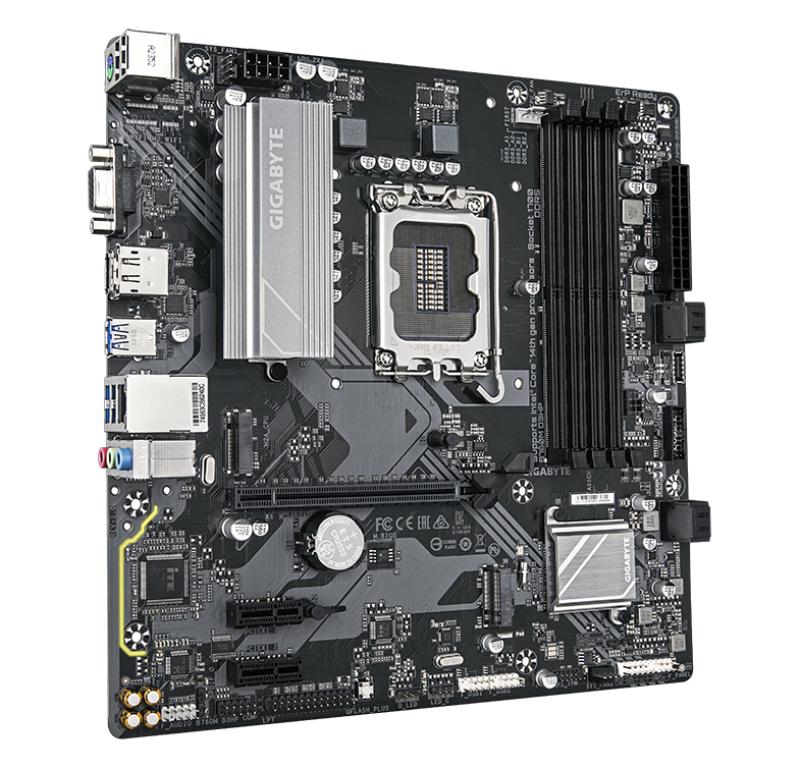

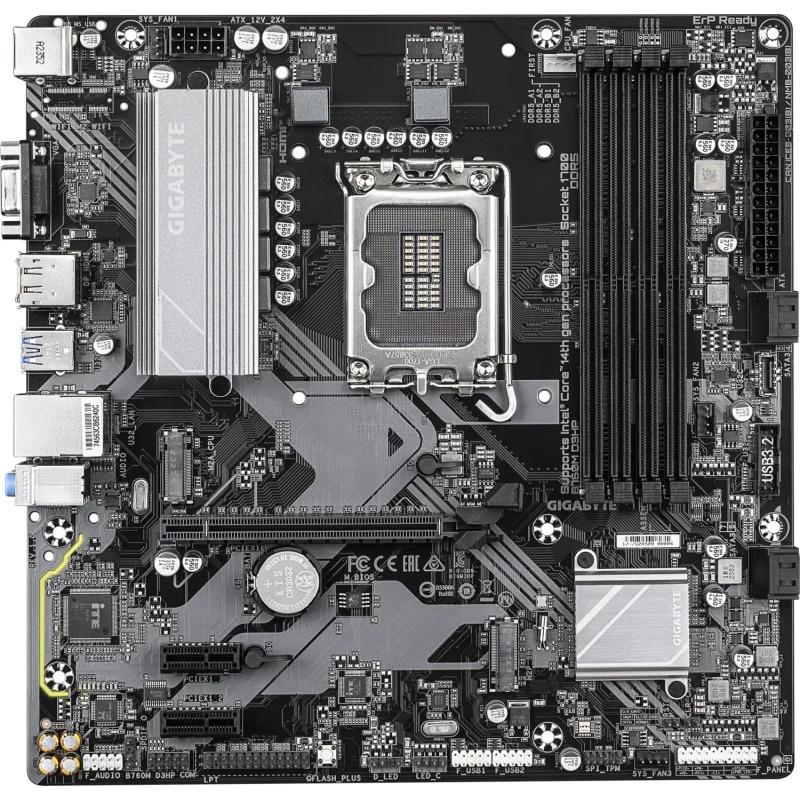

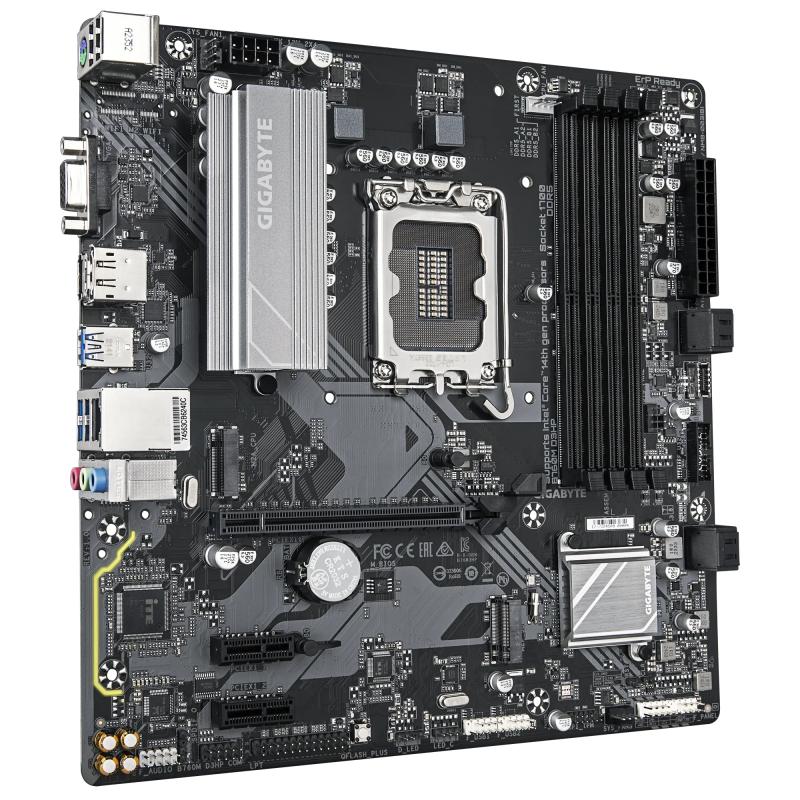

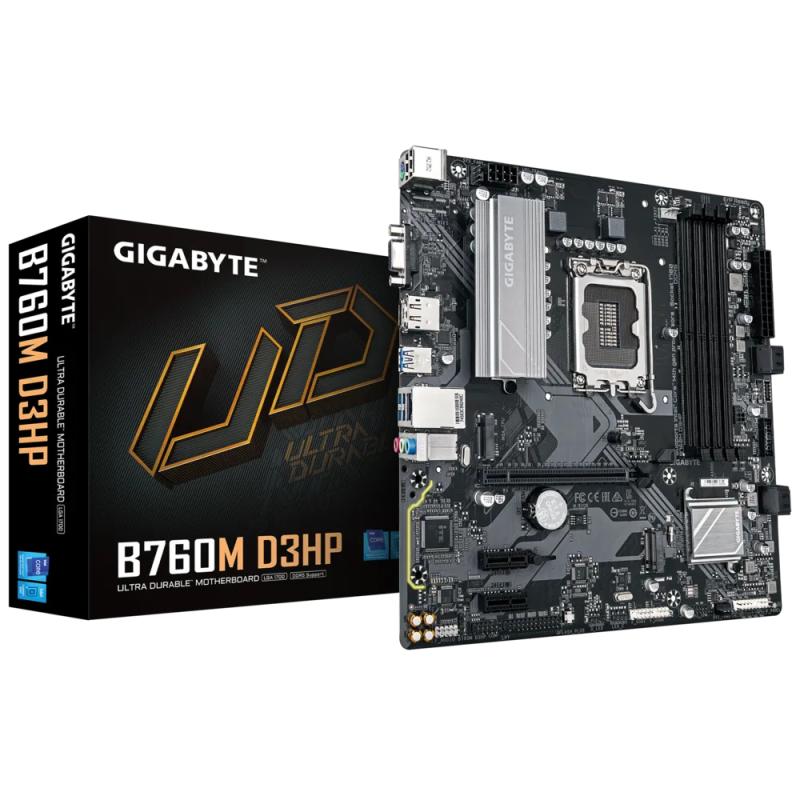

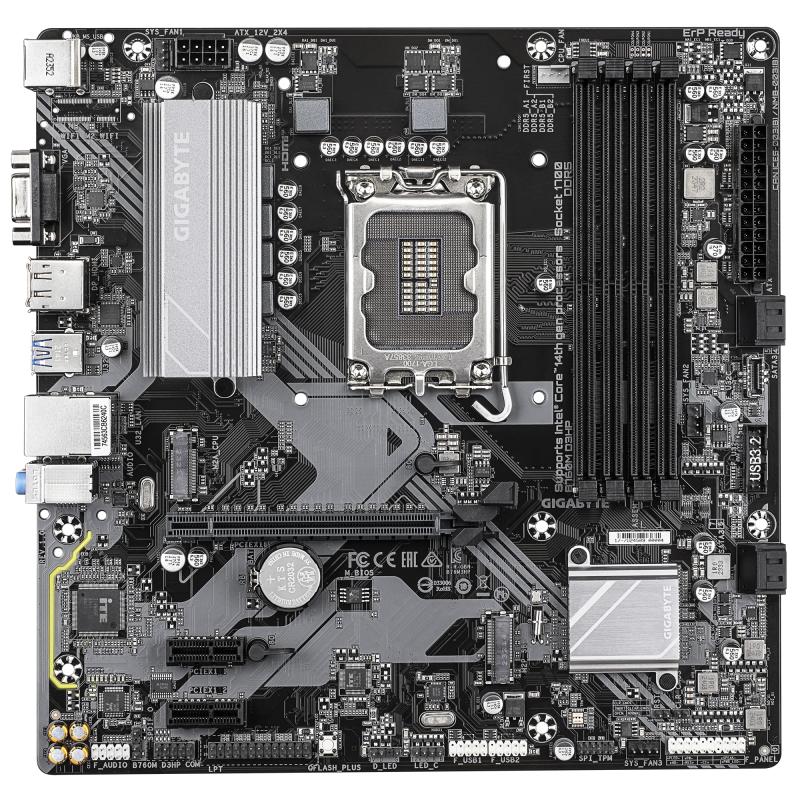

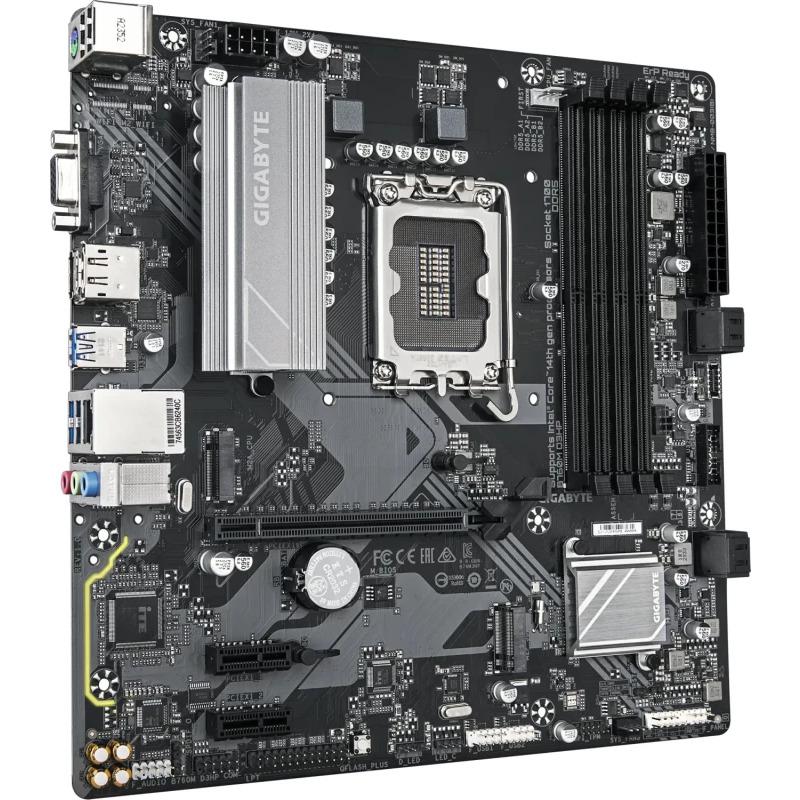

Placa de Baza GIGABYTE B760M D3HP LGA1700
De ce să alegi LEADtech.ro?
vezi detalii
În stoc
574,98 lei 608,99 lei
În stoc
Descriere

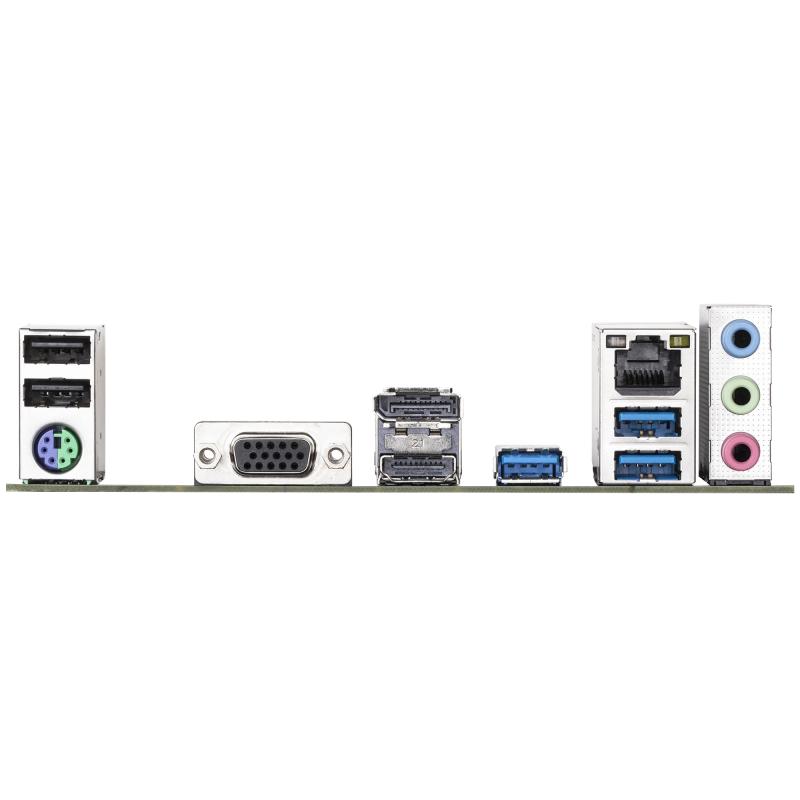

Placa de Baza GIGABYTE B760M D3HP LGA1700, 4x DDR5, 1x D-Sub 1x HDMI 1x DP, 1x PCIE 4.0 x16 2x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Specificații
PCI | 0 |
---|---|
Serial-or-Paralel | No/No |
Video-Connection | HDMI/DP |
Wi-Fi | No |
Onboard-CPU | No |
Weight | 720 g |
RAID support | Yes |
Component for | PC |
Windows operating systems supported | Windows 10, Windows 11 |
Ethernet interface type | Gigabit Ethernet |
Memory channels | Dual-channel |
Processor manufacturer | Intel |
Ethernet LAN | Yes |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI version | 2.1 |
Headphone outputs | 1 |
Microphone in | Yes |
USB 2.0 ports quantity | 2 |
Depth | 244 mm |
Package weight | 1.21 kg |
Products per shipping (inner) case | 1 pc(s) |
Batteries included | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
PCI Express x1 (Gen 3.x) slots | 2 |
Audio output channels | 7.1 channels |
Line-in | Yes |
PCI Express x16 (Gen 4.x) slots | 1 |
Supported storage drive types | HDD & SSD |
LAN controller | Realtek RTL8111H |
Number of M.2 (M) slots | 2 |
VGA (D-Sub) ports quantity | 1 |
HDCP | Yes |
Screws included | Yes |
DisplayPort version | 1.2 |
Product colour | Brown |
Package depth | 268 mm |
DisplayPorts quantity | 1 |
Parallel processing technology support | Not supported |
DVI-D ports quantity | 0 |
DirectX version | 12.0 |
Package height | 68 mm |
Model Chipset | B760 |
Gaming | Nu |
Format | Micro-ATX (mATX) |
Soclu Procesor | Socket 1700 |
Tip Memorie | DDR5 |
Numar sloturi memorie | 4 |
Memorie maxima | 256 GB |
Tip slot interfata grafica | PCIe 4.0 x16 |
Chipset audio integrat | Realtek |
Canale audio | 7.1 |
Wireless | Nu |
BLUETOOTH | Nu |
USB Type-C | Da |
HDMI | Da |
Thunderbolt | Nu |
Sloturi M.2 | 2 |
RJ-45 LAN | 1 |
Number of memory slots | 4 |
Memory slots type | DIMM |
Unbuffered memory | Yes |
Supported storage drive interfaces | M.2, SATA III |
USB 2.0 connectors | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
Number of SATA III connectors | 4 |
Front panel audio connector | Yes |
ATX Power connector (24-pin) | Yes |
CPU fan connector | Yes |
EPS power connector (8-pin) | Yes |
PS/2 ports quantity | 1 |
Motherboard form factor | micro ATX |
BIOS type | UEFI AMI |
Clear CMOS jumper | Yes |
Width | 244 mm |
Supported memory types | DDR5-SDRAM |
Maximum internal memory | 256 GB |
ECC сompatibility | ECC & Non-ECC |
Maximum internal memory per slot | 64 GB |
Number of HDDs supported | 4 |
RAID levels | 0, 1, 5, 10 |
Front panel connector | Yes |
TPM connector | Yes |
RGB LED pin header | Yes |
Motherboard chipset family | Intel |
PC health monitoring | Fan, Temperature, Voltage, Water cooling |
Power source type | ATX |
2nd M.2 highest PCI Express generation | 4.0 |
ACPI version | 5.0 |
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
Battery weight | 3 g |
Lithium weight per battery | 0.07 g |
Number of battery cells | 1 |
Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
Battery type | CR2032 |
Height | 35 mm |
Processor socket | LGA 1700 |
Supported processor sockets | LGA 1700 |
Maximum resolution | 4096 x 2304 pixels |
12V power connector | Yes |
Number of storage drives supported | 6 |
S/PDIF out connector | Yes |
BIOS memory size | 128 Mbit |
Package width | 270 mm |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Serial port headers | 1 |
Motherboard chipset | Intel B760 Express |
Bundled software | Norton Internet Security |
Number of chassis fan connectors | 3 |
1st M.2 largest key size | 2280 |
2nd M.2 largest key size | 2280 |
Number of EPS power connectors (8-pin) | 1 |
Number of CPU fan connectors | 1 |
1st M.2 highest PCI Express generation | 4.0 |
Parallel connector | Yes |
Number of RGB LED pin headers | 2 |
Supported memory clock speeds | 4400,4800,5200,5600 MHz |
Producator | GIGABYTE |
Garantie | 36 |
