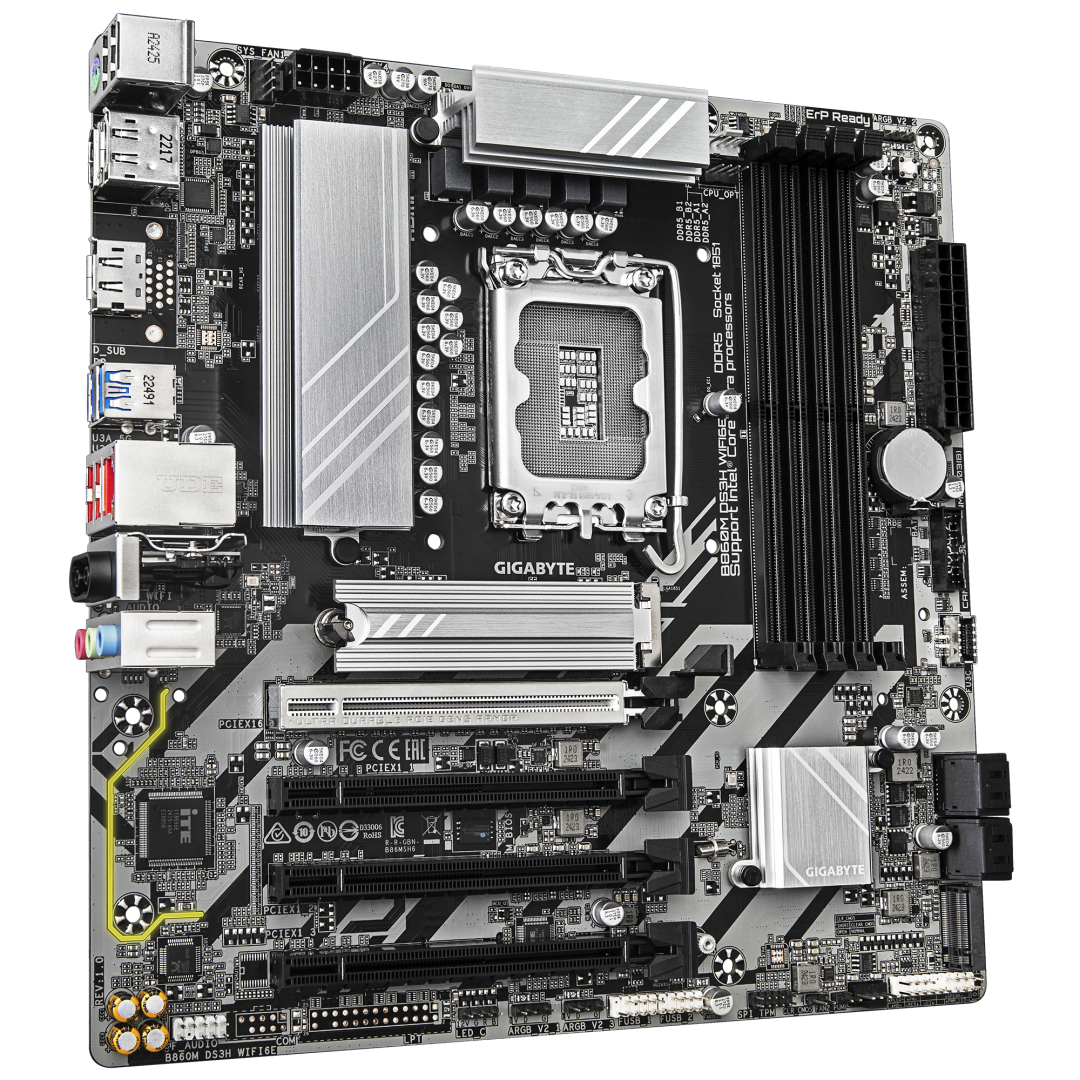

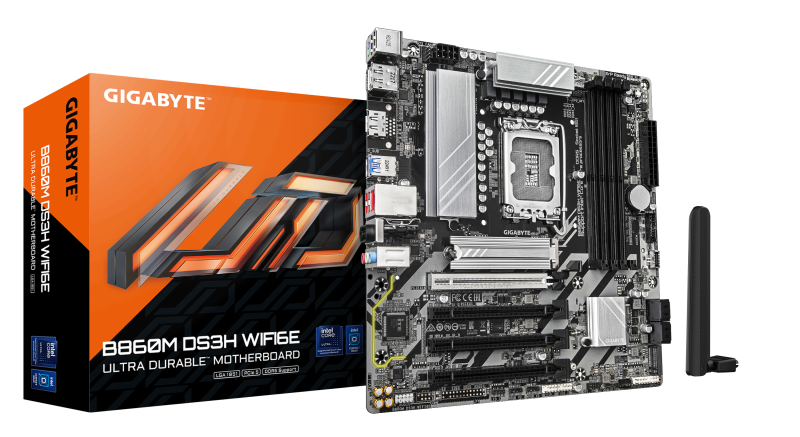

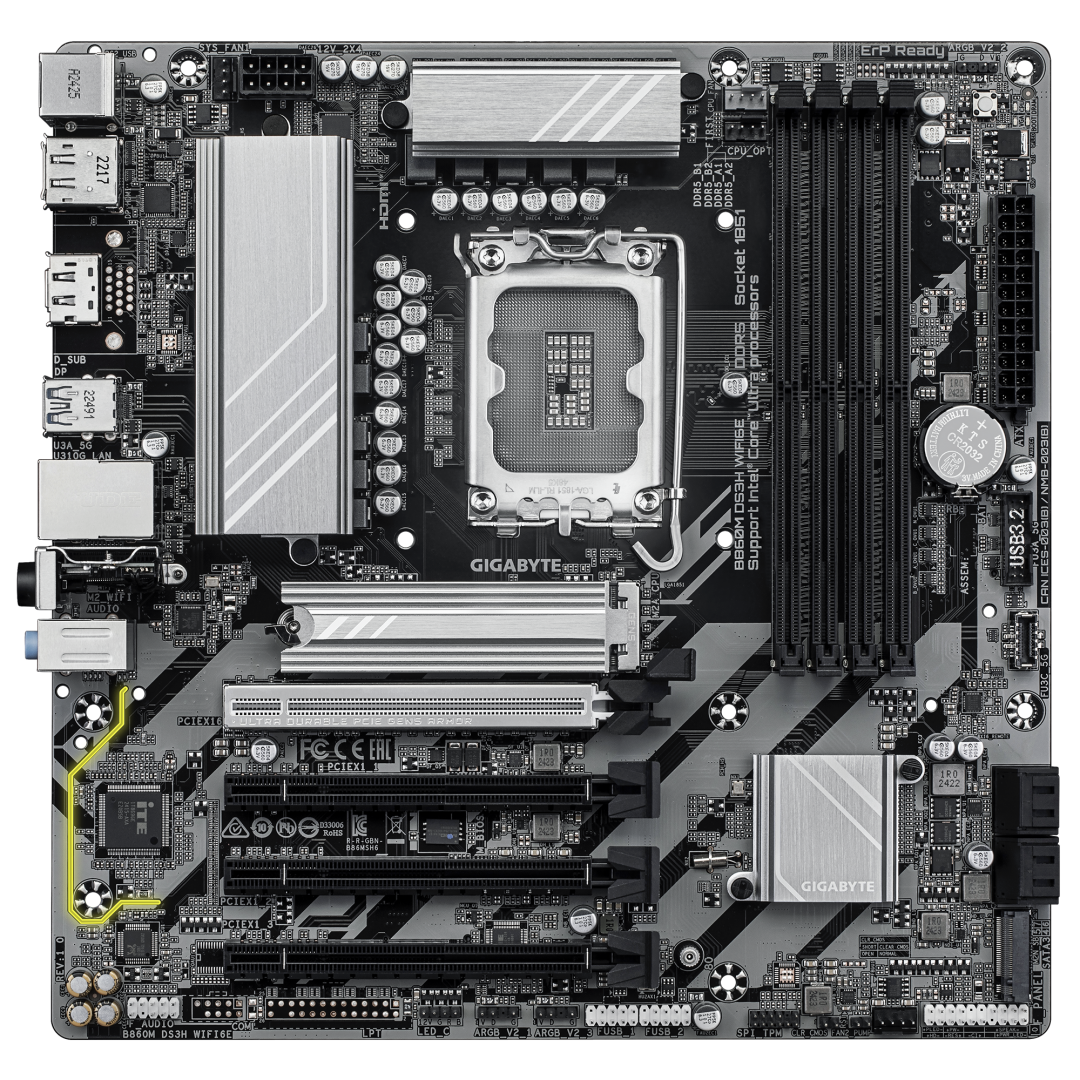

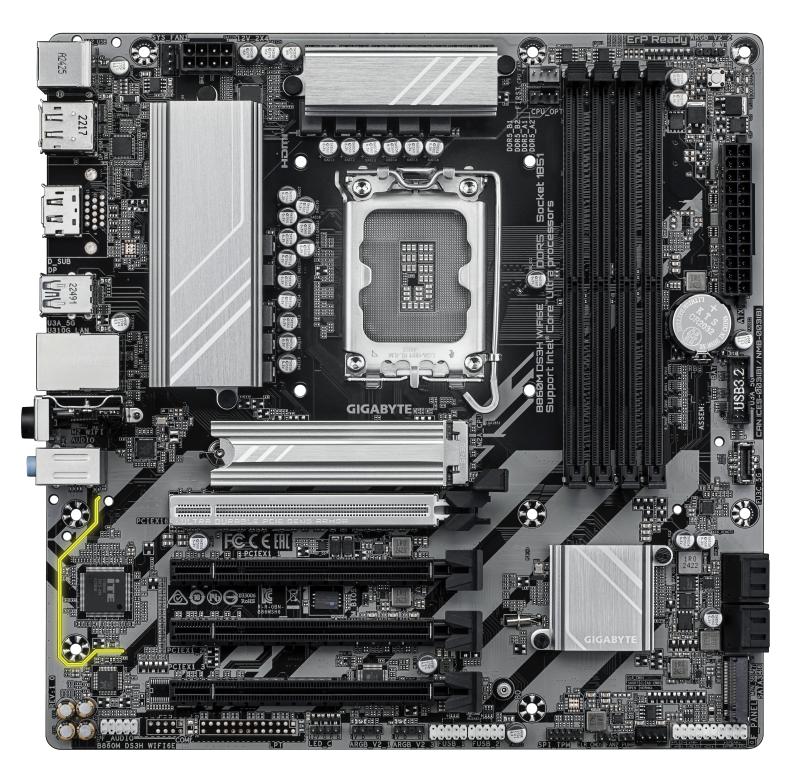

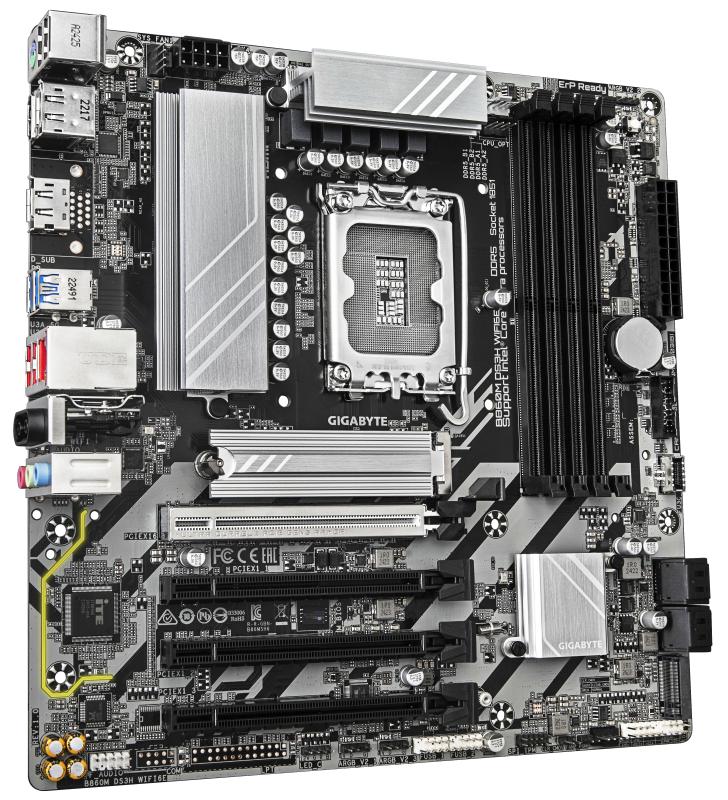

Placa de Baza GIGABYTE B860M DS3H WIFI6E LGA1851
De ce să alegi LEADtech.ro?
vezi detalii
În stoc
756,99 lei 899,99 lei
În stoc
Descriere
Placa de Baza GIGABYTE B860M DS3H WIFI6E LGA1851, 4x DDR5, 1x HDMI 2x DP, 4x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX
Specificații
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| Onboard-CPU | No |
| Country of origin | China |
| RAID support | Yes |
| Component for | PC |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Bluetooth version | 5.3 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Depth | 244 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Batteries included | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio output channels | 7.1 channels |
| USB 2.0 ports quantity | 3 |
| DisplayPorts quantity | 2 |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Audio Chip | Realtek ALC897 |
| Supported storage drive types | HDD & SSD |
| Number of M.2 (M) slots | 2 |
| HDCP | Yes |
| Screws included | Yes |
| Product colour | Brown |
| DisplayPort version | 2.1 |
| Package depth | 268 mm |
| VGA (D-Sub) ports quantity | 0 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Package height | 68 mm |
| Model Chipset | B860 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket 1851 |
| Tip Memorie | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 256 GB |
| Tip slot interfata grafica | N/A |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| BLUETOOTH | Da |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Width | 244 mm |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| Front panel connector | Yes |
| Number of CPU fan connectors | 2 |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Height | 35 mm |
| Antenna included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Number of storage drives supported | 6 |
| Package width | 270 mm |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| Number of EPS power connectors (8-pin) | 1 |
| Weight | 1.1 kg |
| Supported memory clock speeds | 5600,6400,9066 MHz |
| PCI Express x16 (Gen 4.x) slots | 5 |
| Package weight | 1.25 kg |
| Producator | GIGABYTE |
| Garantie | 36 |
