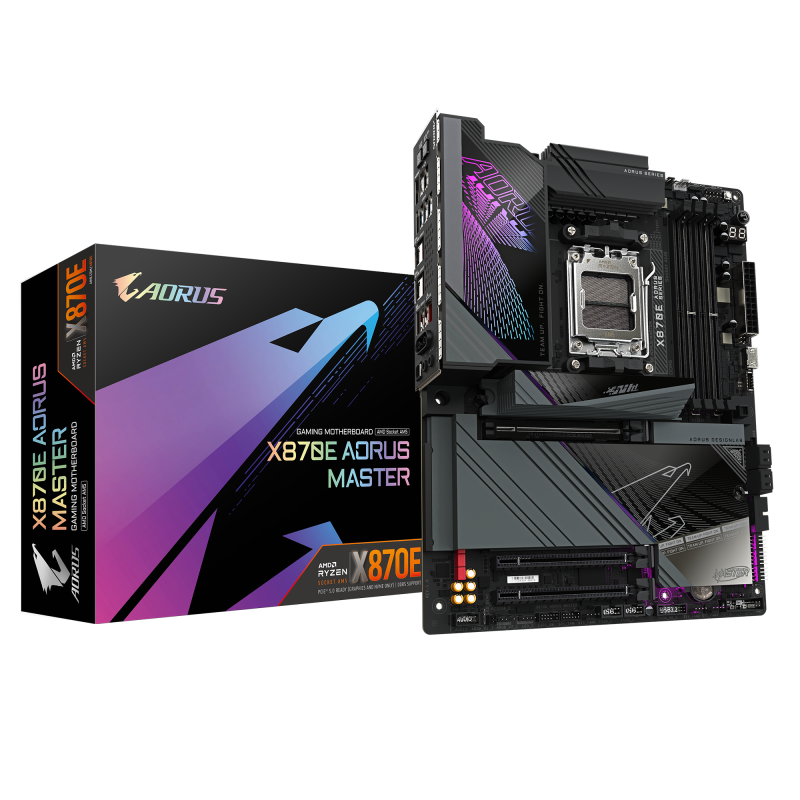

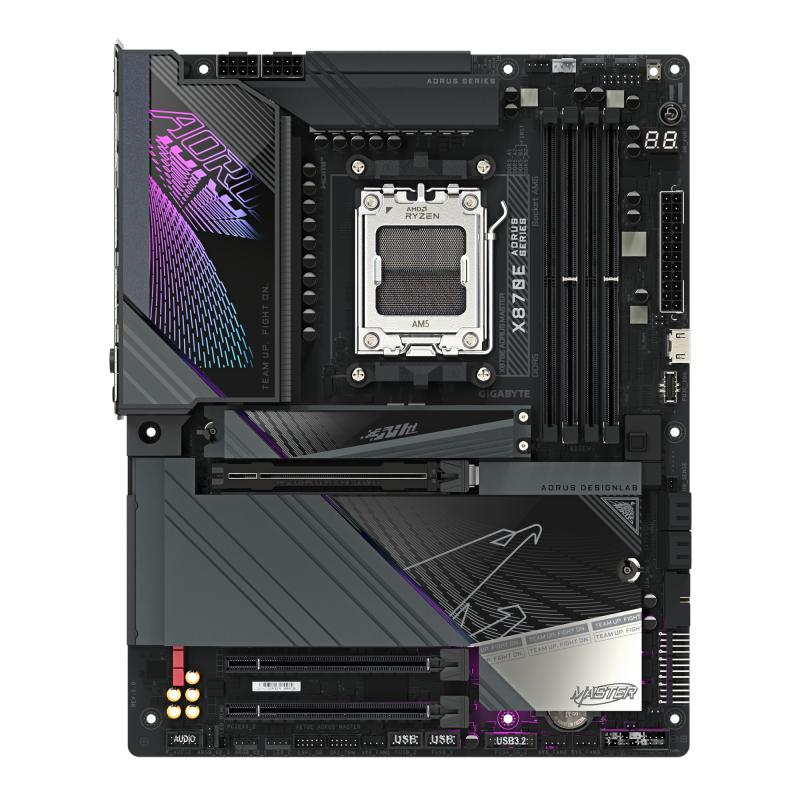

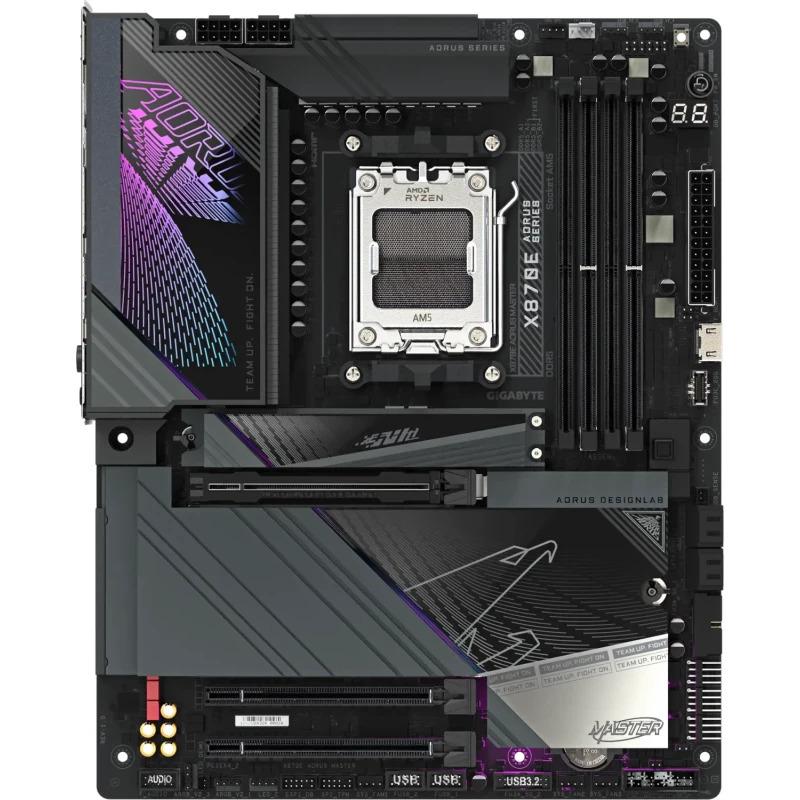

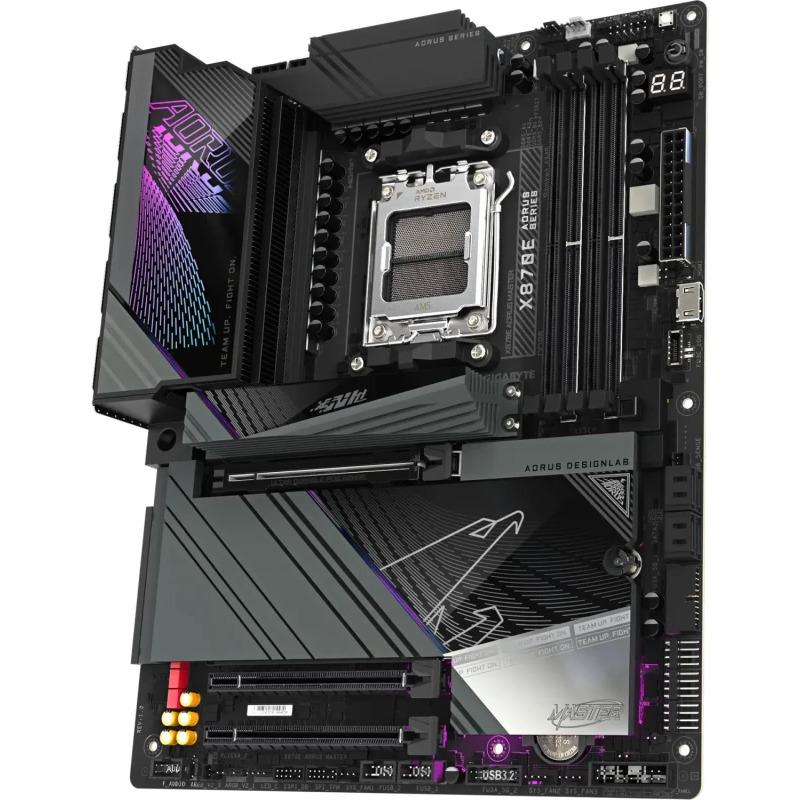

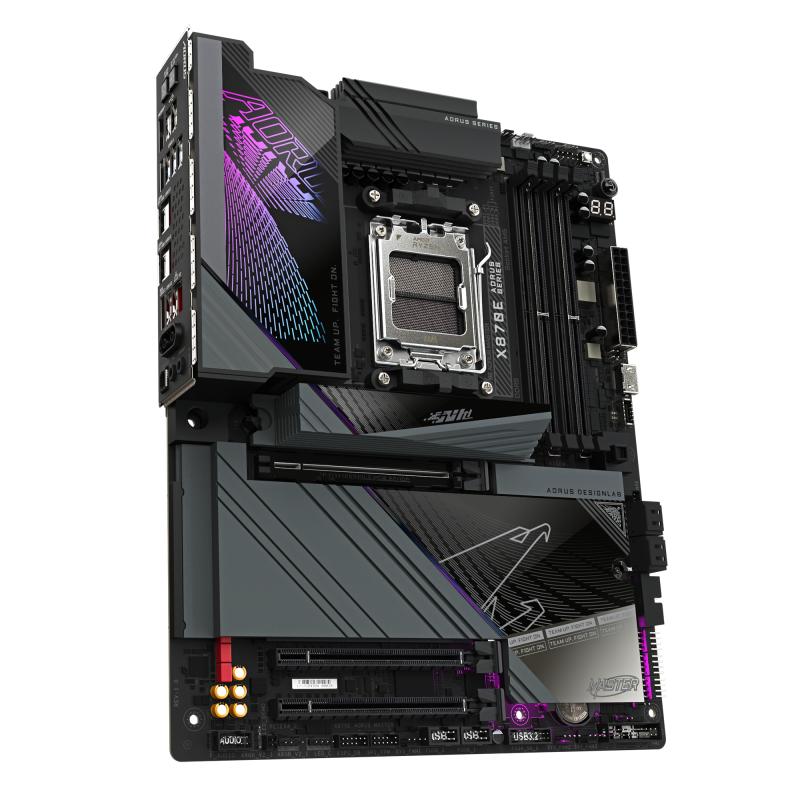

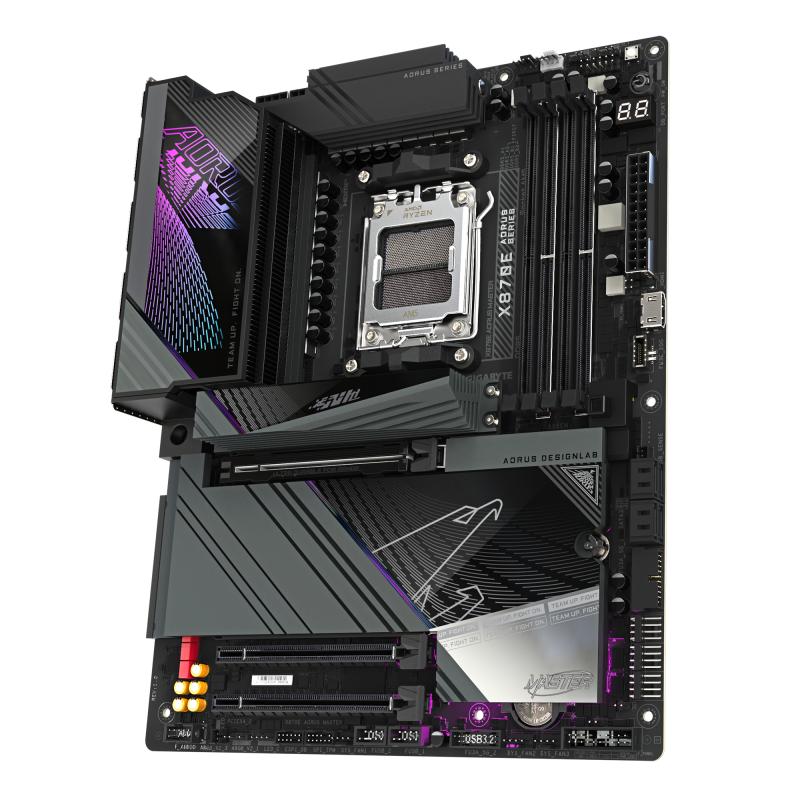

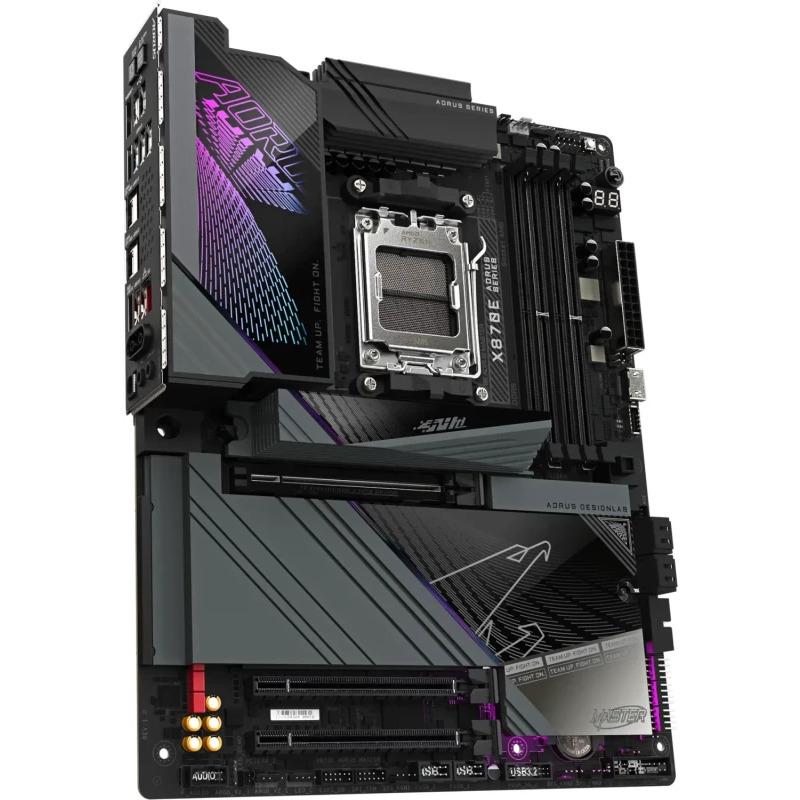

Placa de Baza GIGABYTE X870E AORUS MASTER AM5

Name: Placa de Baza GIGABYTE X870E AORUS MASTER AM5
SKU: X870E AORUS MASTER
Availability: InStock

SKU: X870E AORUS MASTER

Producator: Gigabyte

Favorite

De ce să alegi LEADtech.ro?

Plata online
cu cardul
vezi detalii

Comenzi predate curierului in aceeasi zi pana in ora 15:00 vezi detalii

Retur in 14 zile
vezi detalii

Ai o intrebare?
Suna la 0756824557
vezi detalii

Disponibilitate:

În stoc

2.762,99 lei ~~3.047,00 lei~~

În stoc

in stoc

Favorite

Compara

Descriere

Placa de Baza GIGABYTE X870E AORUS MASTER AM5, 4x DDR5, 2x USB4 1x HDMI 1x Front HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX

SKU: X870E AORUS MASTER Categorie: Placi de baza

Specificații

PCI	0
Serial-or-Paralel	Yes/No
Video-Connection	HDMI
Wi-Fi	Yes
Onboard-CPU	No
Product colour	Black
Country of origin	China
RAID support	Yes
Component for	PC
DisplayPort version	1.4
Memory channels	Dual-channel
Ethernet LAN	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI version	2.1
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Bluetooth version	5.3
Headphone outputs	1
Processor manufacturer	AMD
Wi-Fi standards	Wi-Fi 7 (802.11be)
USB 2.0 ports quantity	2
Width	305 mm
Depth	244 mm
Products per shipping (inner) case	1 pc(s)
Batteries included	Yes
USB4 Gen 3x2 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
PCI Express x16 (Gen 3.x) slots	1
Audio output channels	7.1 channels
Line-in	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
On-board graphics card	No
Supported storage drive types	HDD & SSD
S/PDIF out port	Yes
USB 3.2 Gen 2x2 Type-C ports quantity	0
Screws included	Yes
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	0
Parallel processing technology support	Not supported
DVI-D ports quantity	0
DirectX version	12.0
Package weight	2.97 kg
Model Chipset	X870E
Gaming	Da
Format	ATX
Soclu Procesor	Socket AM5
Tip Memorie	DDR5
Numar sloturi memorie	4
Memorie maxima	256 GB
Tip slot interfata grafica	N/A
Chipset audio integrat	Realtek
Canale audio	7.1
Wireless	Da
BLUETOOTH	Nu
USB Type-C	Da
HDMI	Da
Thunderbolt	Nu
Sloturi M.2	4
RJ-45 LAN	1
Number of memory slots	4
Memory slots type	DIMM
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Number of SATA III connectors	4
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
EPS power connector (8-pin)	Yes
Motherboard chipset family	AMD
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
Supported memory types	DDR5-SDRAM
Maximum internal memory	256 GB
ECC сompatibility	ECC & Non-ECC
Maximum internal memory per slot	64 GB
Number of HDDs supported	4
Front panel connector	Yes
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
TPM connector	Yes
Number of water pump connectors	2
RGB LED pin header	Yes
WiFi-AP antenna jack	2
Motherboard form factor	ATX
Windows operating systems supported	Windows 11 x64
1st M.2 largest key size	25110
1st M.2 highest PCI Express generation	5.0
2nd M.2 largest key size	22110
3rd M.2 largest key size	22110
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System Management BIOS (SMBIOS) version	2.7
Battery weight	3 g
Lithium weight per battery	0.07 g
Number of battery cells	1
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Battery type	CR2032
Package height	80 mm
Height	35 mm
Antenna included	Yes
USB 3.2 Gen 2x2 connectors	1
Ethernet interface type	5 Gigabit Ethernet
Clear CMOS button	Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
Number of storage drives supported	8
Number of M.2 (M) slots	4
PS/2 ports quantity	0
PCI Express x1 (Gen 3.x) slots	0
PCI Express x1 (Gen 4.x) slots	0
PCI Express x4 (Gen 4.x) slots	0
RAID levels	0, 1, 10
Number of chassis fan connectors	6
Processor socket	Socket AM5
Supported processor sockets	Socket AM5
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
4th M.2 highest PCI Express generation	4.0
PC health monitoring	Fan, Temperature, Voltage
Maximum internal memory supported by processor	256 GB
USB4 Gen 2x2 ports quantity	2
Motherboard chipset	AMD X870
Audio Chip	Realtek ALC1220
PCI Express x4 slots	2
PCI Express x8 (Gen 3.x) slots	0
PCI Express x8 (Gen 4.x) slots	0
PCI Express x8 (Gen 5.x) slots	0
2nd M.2 highest PCI Express generation	5.0
3rd M.2 highest PCI Express generation	5.0
4th M.2 largest key size	22110
PCI Express x4 (Gen 3.x) slots	0
Package width	345 mm
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	4
Package depth	294 mm
Number of RGB LED pin headers	5
LAN controller	Realtek RTL8126
Supported memory module capacities	1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB
WLAN controller model	Qualcomm QCNCM865
Supported memory clock speeds	8600 MHz
Weight	2.54 kg
Producator	GIGABYTE
Garantie	36
