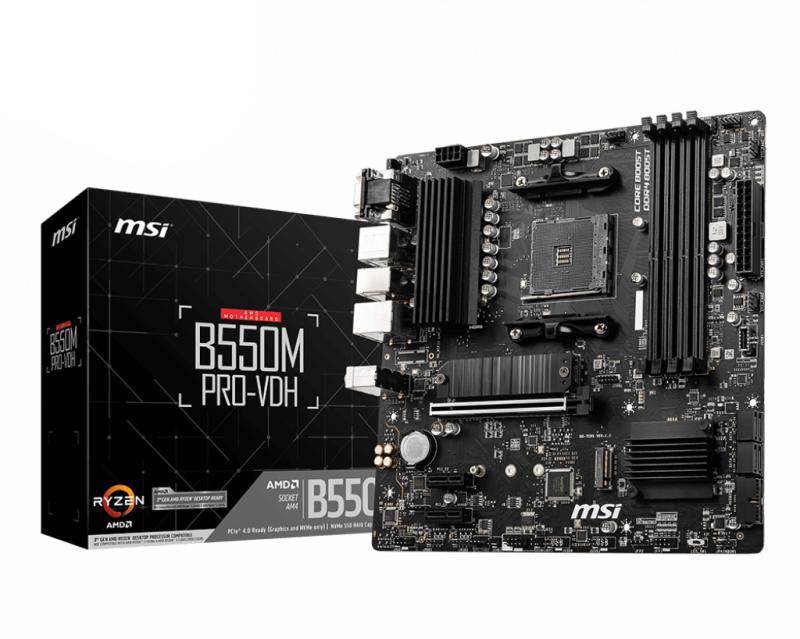

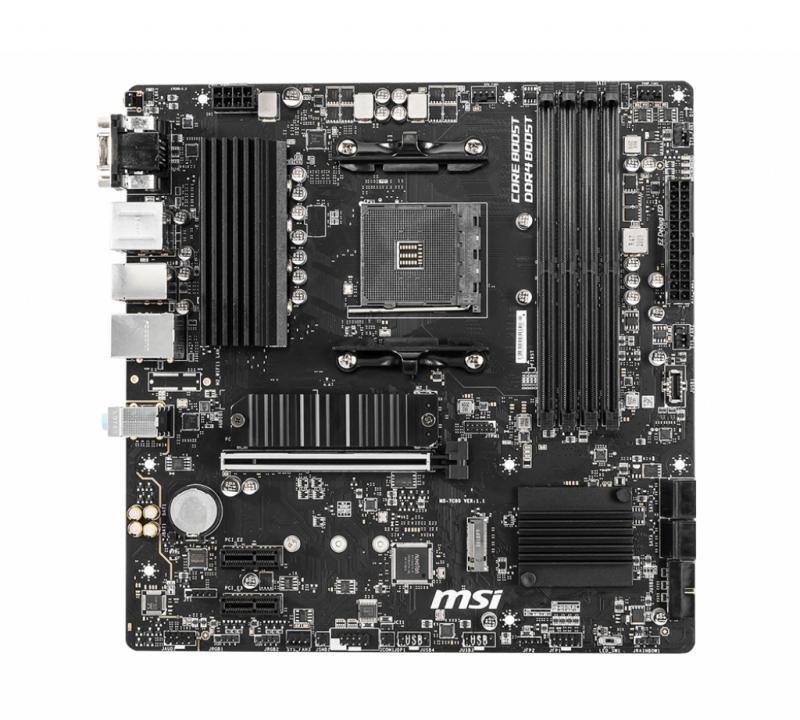

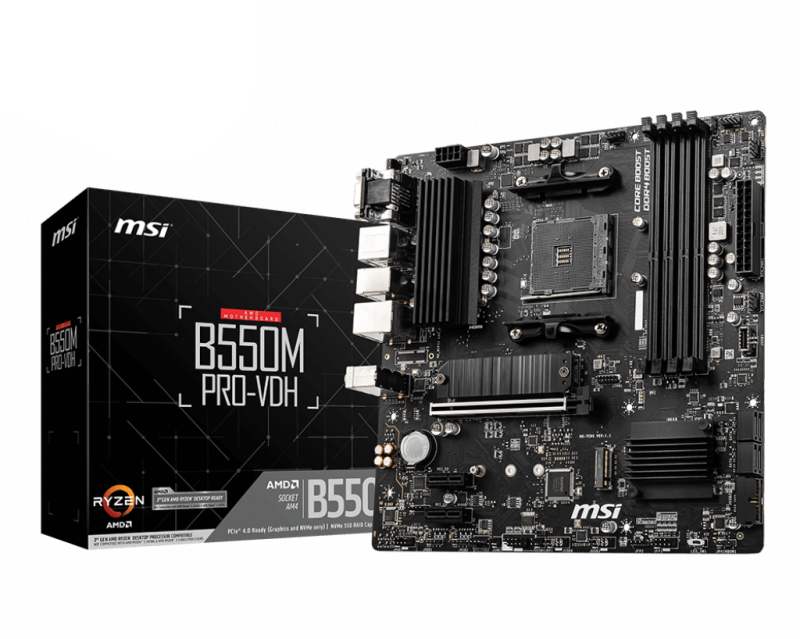

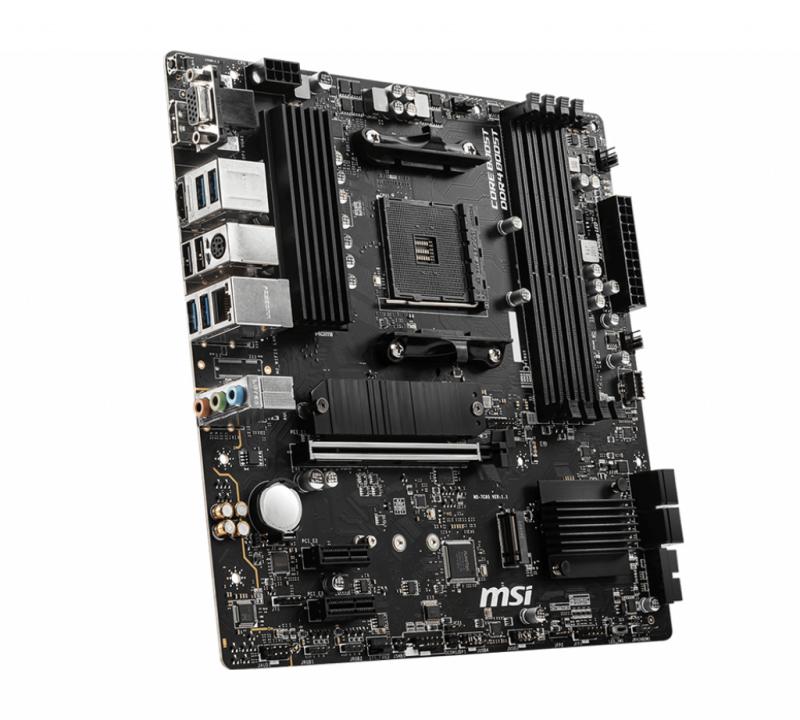

Placa de Baza MSI B550M PRO-VDH AM4
Producator:
Msi
De ce să alegi LEADtech.ro?
Comenzi predate curierului in aceeasi zi pana in ora 15:00
vezi detalii
Retur in 14 zile
vezi detalii
vezi detalii
Disponibilitate:
În stoc
447,99 lei
În stoc
in stoc
Descriere
Placa de Baza MSI B550M PRO-VDH AM4 4x DDR4, 1x PCIE x1 2x PCIE x2, 2x M.2, 4x SATA3, 1x VGA 1x HDMI 1x DP, mATX
Specificații
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | No |
| Onboard-CPU | No |
| Component for | PC |
| Weight | 1 kg |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 84733020 |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 GB |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 2 |
| Depth | 244 mm |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 2 |
| Processor socket | Socket AM4 |
| Motherboard chipset | AMD B550 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| Maximum resolution | 4096 x 2160 pixels |
| Drivers included | Yes |
| Model Chipset | B550 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| BLUETOOTH | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Clear CMOS jumper | Yes |
| Width | 244 mm |
| ECC сompatibility | ECC & Non-ECC |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Maximum number of SMP processors | 1 |
| 12V power connector | Yes |
| Cables included | SATA |
| Serial port headers | 1 |
| PS/2 ports quantity | 0 |
| Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz |
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 10 |
| Chassis intrusion connector | Yes |
| eSATA ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Height | 65 mm |
| Number of chassis fan connectors | 3 |
| LAN controller | Realtek 8111HN |
| Producator | MSI |
| Garantie | 36 |
