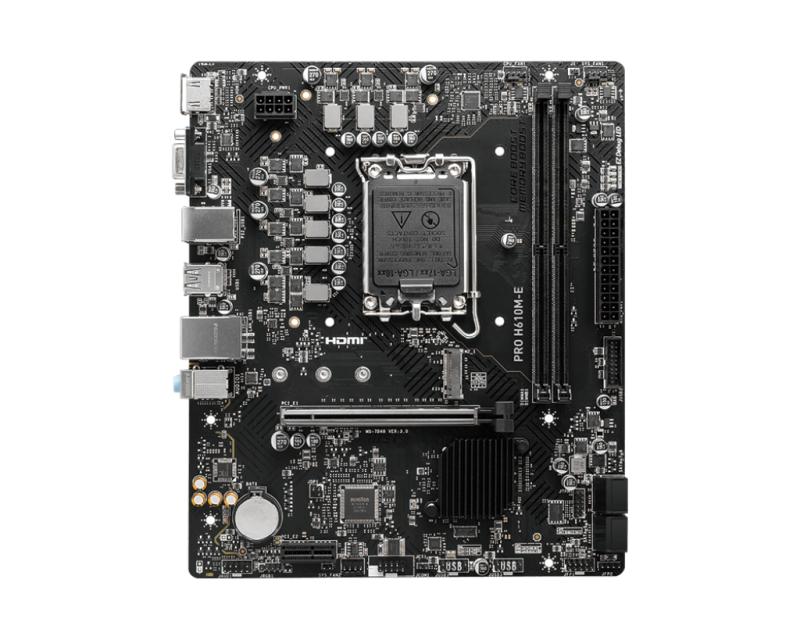

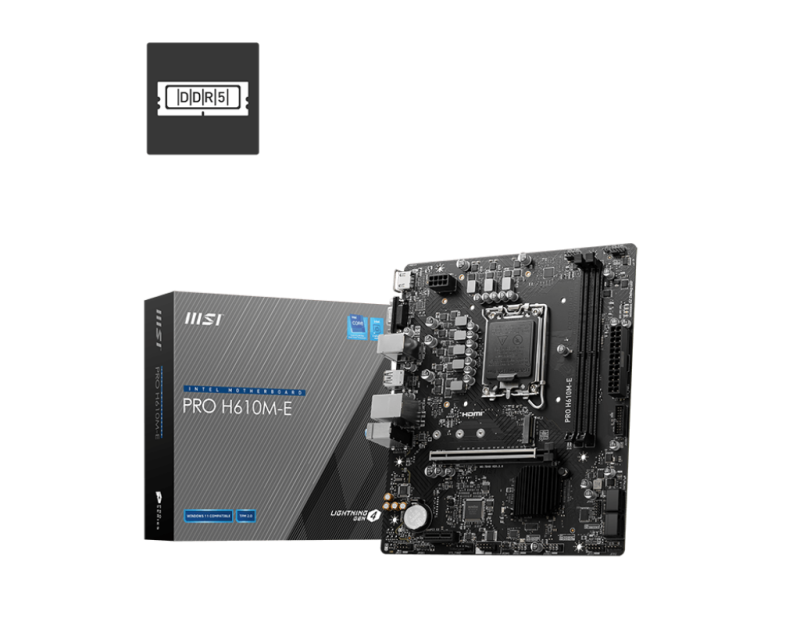

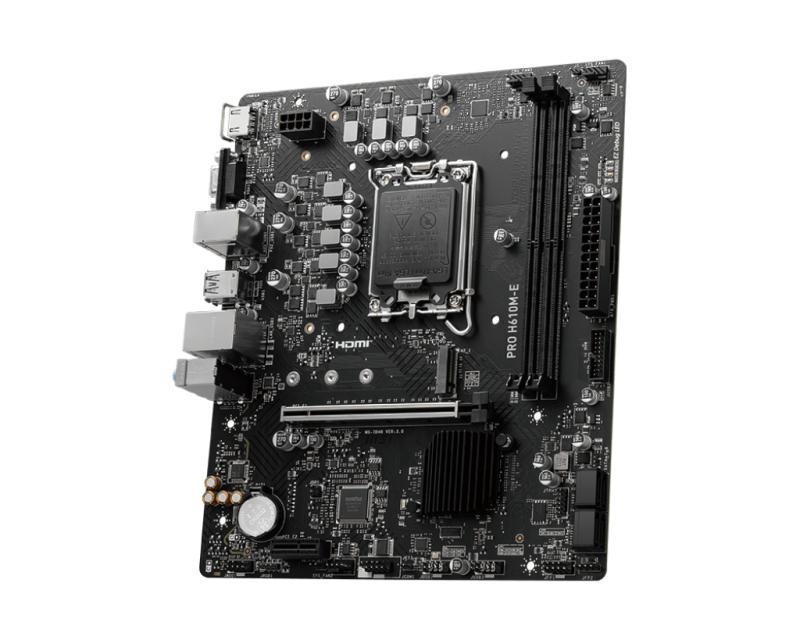

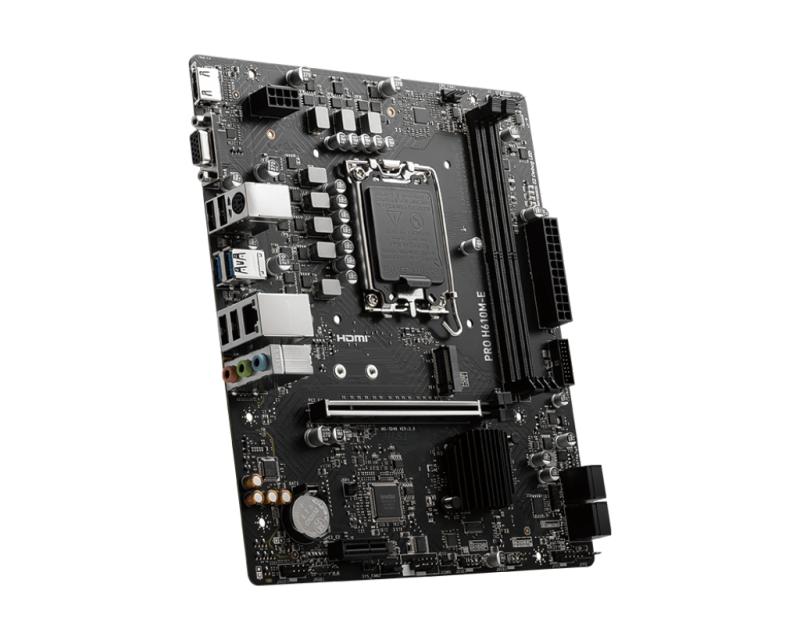

Placa de bază MSI PRO H610M-E DDR5 LGA1700
De ce să alegi LEADtech.ro?
vezi detalii
Stoc furnizor. Pentru mai multe detalii va rugam sa ne contactati
328,99 lei 395,98 lei
Stoc furnizor. Pentru mai multe detalii va rugam sa ne contactati
Descriere
Placa de baza MSI PRO H610M-E DDR5 LGA1700 2x DDR5, 1x HDMI 1x VGA, 1x PCIE x16 1x PCIE x1, 1x M.2 4x SATA 6gb/s, mATX
Specificații
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | No |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| Windows operating systems supported | Windows 10, Windows 11 |
| Cooling type | Active |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Maximum internal memory | 96 GB |
| HDMI version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Drivers included | Yes |
| Model Chipset | H610 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket 1700 |
| Tip Memorie | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 96 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| BLUETOOTH | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 1 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Supported memory types | DDR5-SDRAM |
| RAID levels | 0, 1, 5, 10 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset family | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Thunderbolt headers | 2 |
| ECC сompatibility | Non-ECC |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 4 |
| ACPI version | 6.4 |
| Audio connector | Yes |
| Supported memory clock speeds | 5600 MHz |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Number of COM connectors | 2 |
| Motherboard chipset | Intel H610 |
| Microphone in | Yes |
| Cables included | SATA |
| Power source type | ATX |
| Headphone outputs | 2 |
| Width | 200 mm |
| Depth | 236.2 mm |
| Producator | MSI |
| Garantie | 36 |
