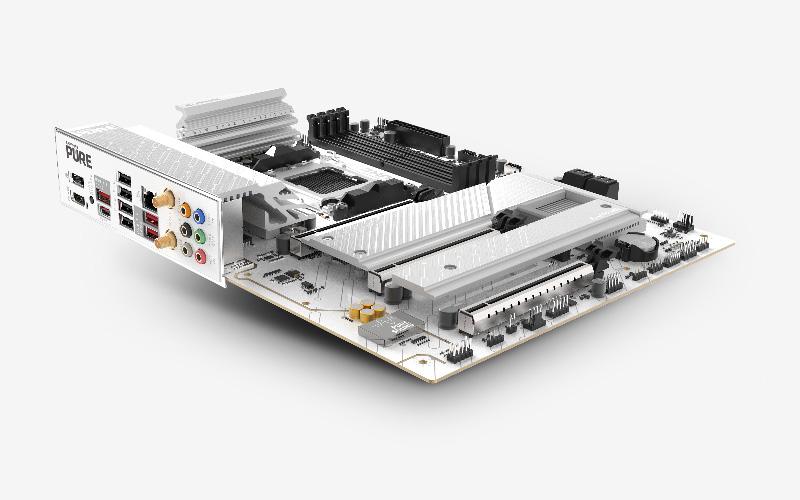

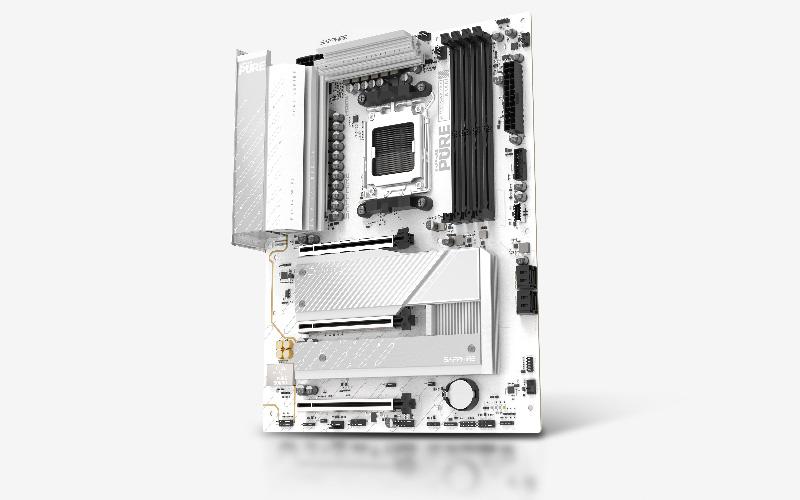

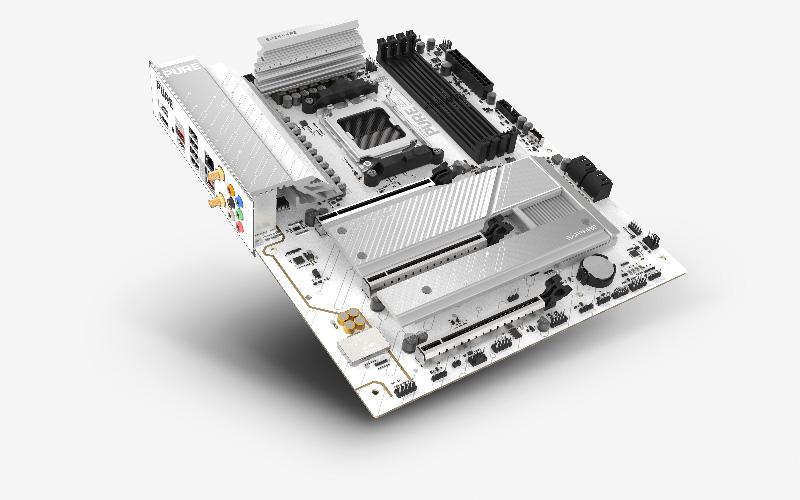

Placa de baza Sapphire PURE B850A WIFI
De ce să alegi LEADtech.ro?
vezi detalii
În stoc
974,99 lei 1.297,99 lei
În stoc
Descriere
Placa de baza Sapphire PURE B850A WIFI
Specificații
| PCI | 2 |
|---|---|
| Video-Connection | VGA/HDMI |
| Wi-Fi | Yes |
| PCI-Ex16 | 1 |
| Onboard-CPU | Yes |
| Component for | PC |
| USB connector type | USB Type-A, USB Type-C |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Processor manufacturer | AMD |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| Audio output channels | 7.1 channels |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Audio Chip | Realtek ALC897 |
| Supported storage drive types | HDD & SSD |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Sloturi memorie | 4 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Gaming | Nu |
| HDMI | Da |
| Thunderbolt | Nu |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Motherboard chipset family | AMD |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Number of storage drives supported | 7 |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard form factor | ATX |
| Number of M.2 (M) slots | 3 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Antenna included | Yes |
| 12V power connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Serial port headers | 1 |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Supported memory clock speeds | 8000 MHz |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of chassis fan connectors | 3 |
| LAN controller | Dragon RTL8125BG |
| Motherboard chipset | AMD B850 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 largest key size | 2280 |
| USB 2.0 connectors | 1 |
| Number of water pump connectors | 1 |
| Audio connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of RGB LED pin headers | 3 |
| PCI-Ex1 | 0 |
| RAM-Slots | 4 |
| MB-Format | micro-ATX |
| Tip Memorie | DDR4 |
| Canale audio | N/A |
| RJ-45 LAN | N/A |
| Chipset audio integrat | Realtek |
| USB Type-C | N/A |
| MB-Socket | AM5 |
| Format | ATX |
| Recomandat Gaming | Da |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Microphone in | Yes |
| Bluetooth version | 5.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Product colour | White |
| Headphone outputs | 6 |
| Width | 30.5 mm |
| USB3 | 1 |
| Sloturi M.2 | N/A |
| Soclu Procesor | NA (integrated CPU) |
| Numar sloturi memorie | N/A |
| Memorie maxima | 128 GB |
| Model Chipset | B850 |
| BLUETOOTH | 5.4 |
| RJ-45 | 1 |
| Interfata grafica | PCI Express x16 5.0 |
| SATA III | 4 |
| USB 2.0 | 4 |
| Socket procesor | AM5 |
| Placa video Integrata | Necesita procesor cu tehnologia AMD Radeon Graphics |
| Placa audio integrata | 7.1 Audio |
| Chipset | B850 |
| Producator chipset | AMD |
| Procesoare suportate | AMD Ryzen 7000/8000/9000 Series |
| Memorie Suportata | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Tehnologie | Dual channel |
| PCI Express 5.0 | 1 (x16) |
| Header USB 3.0 | Da |
| Suport audio | 7.1 |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Depth | 24.4 mm |
| NGFF (M.2) | 3 |
| DisplayPort | 1 |
| Placa retea integrata | 2.5 Gbps |
| USB 3.2 Gen2 tip A | 3 |
| Chipset audio | Realtek ALC897 |
| Chipset retea | Realtek RTL8125BG |
| BIOS | SAPPHIRE CORE BIOS |
| Alte specificatii | 1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2 |
| Frecvente suportate | Pana la 8000 MHz(OC) |
| PCI Express 4.0 | 2 (x16) (1x x4, 1x x2) |
| USB Tip C | 1x USB 3.2 Gen 2 tip C |
| Audio jacks | 6 |
| Wireless | 802.11 a/b/g/n/ac/ax/be(2×2)2.4 GHz / 5GHz / 6GHz |
| BIOS Flashback | 1 |
| Conectori speciali | 2× Wi Fi Antenna |
| Producator | SAPPHIRE |
| Garantie | 24 |
