UPS Legrand Keor PDU monofazat, 800VA/480W, IN 1xIEC 10A OUT

SKU: 000000000000310332
Producator: Legrand

De ce să alegi LEADtech.ro?

Plata online
cu cardul
vezi detalii
Comenzi predate curierului in aceeasi zi pana in ora 15:00 vezi detalii
Retur in 14 zile
vezi detalii
Ai o intrebare?
Suna la 0756824557
vezi detalii
Disponibilitate:

În stoc

708,99 lei 867,99 lei

În stoc

in stoc
Credit module tbi bank 3.4.1

156.81 Lei x 4 rate

Descriere

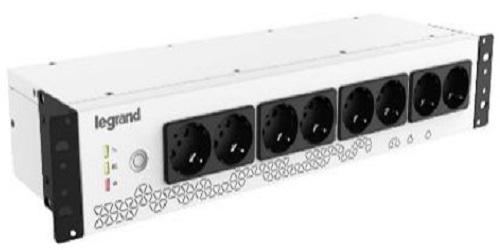

Keor PDU is a new UPS specifically designed for installation in 19-inch panels and racks.
Its PDU style design with ultra compact dimensions provides 8 sockets with up to 15 minute autonomy in just 2 rack units.

SKU: 000000000000310332 Categorie:

Specificații

USB-Port

Yes

Capacitate putere UPS

480W

Products per master (outer) case

1 pc(s)

Pallet net width

120 cm

Tip UPS

Offline

Capacitate Rack:

2U

Ecran LCD

Nu

Port USB

Da

Output operation voltage (min)

207 V

Output operation voltage (max)

253 V

Output frequency

50/60 Hz

Number of input phases

1

Number of output phases

1

Efficiency

98%

Output power factor

0.6

AC outlet types

C13 coupler

Power plug

C14 coupler

USB port type

USB Type-B

Waveform

Sine

Rack capacity

2U

Output voltage regulation

10%

Input frequency

45/65 Hz

Output frequency regulation

1 Hz

Potential-free output

No

Auto shut-off

No

Pallet net length

100 cm

Form factor

Rackmount

Input operation voltage (min)

160 V

Output power capacity

0.8 kVA

Output power

480 W

Input operation voltage (max)

290 V

Typical backup time at half load

10 min

UPS topology

Standby (Offline)

Battery-Capacity

9 Ah

Maximum current

10 A

Power protection features

Overdischarge, Overload, Short circuit

AC outlets quantity

16 AC outlet(s)

Number of type F outputs

8

Master (outer) case width

159 mm

Master (outer) case length

528 mm

Master (outer) case height

255 mm

Pallet net height

102 cm

Pallet net weight

306.6 kg

Master (outer) case gross weight

6.39 kg

Operating temperature (T-T)

0 – 40 °C

Number of batteries supported

1

Power source type

AC

Battery technology

Sealed Lead Acid (VRLA)

Product colour

Black, White

Depth

150 mm

Compliance certificates

CE

Operating relative humidity (H-H)

0 – 95%

Sustainability compliance

Yes

Width

88 mm

Harmonized System (HS) code

85078000

Weight

5.5 kg

Noise level

40 dB

Package height

440 mm

Height

440 mm

Products per pallet

48 pc(s)

Package width

88 mm

Certification

EN 62040-1, EN 62040-2

Package depth

5.81 mm

Package weight

6.07 kg

Producator

LEGRAND

Garantie

24
