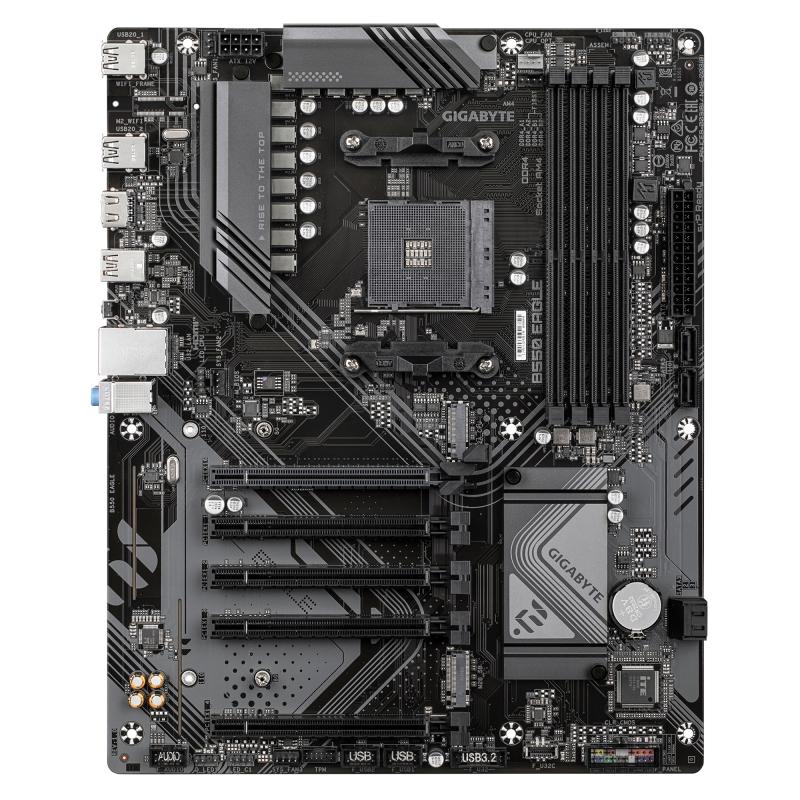

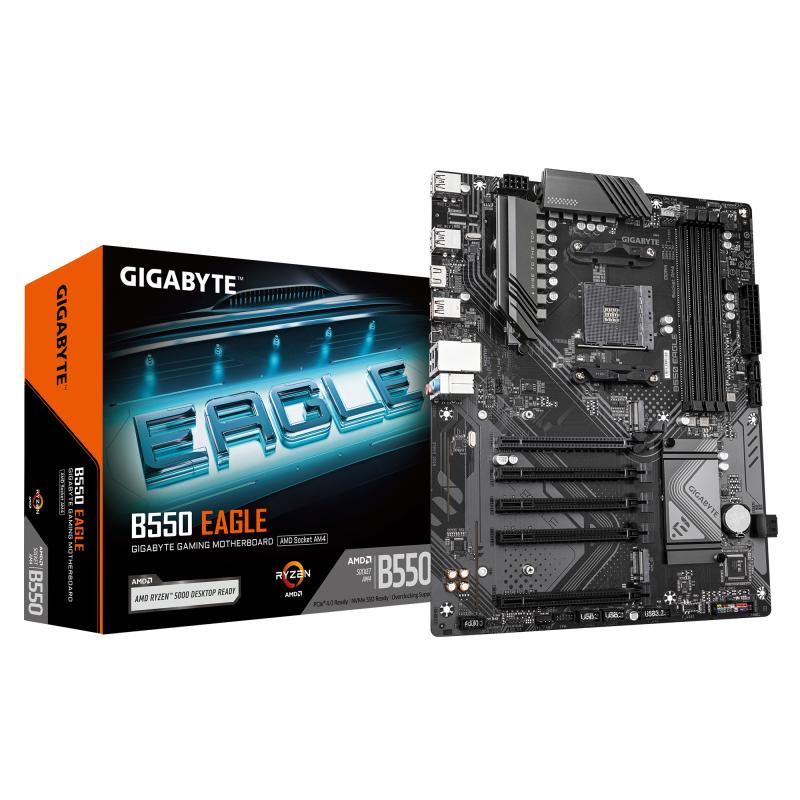

Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x
De ce să alegi LEADtech.ro?
vezi detalii
În stoc
520,99 lei 569,99 lei
În stoc
Descriere
Placa de Baza GIGABYTE B550 EAGLE AM4, 4x DDR4, 1x HDMI, 1x PCIE 4.0 x16 4x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, ATX
Specificații
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI |
| Wi-Fi | No |
| USB3 | 4-8 |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| Ethernet interface type | Gigabit Ethernet |
| Weight | 1.25 kg |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Processor manufacturer | AMD |
| Microphone in | Yes |
| Width | 305 mm |
| Depth | 244 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Batteries included | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Audio output channels | 7.1 channels |
| Line-in | Yes |
| Audio Chip | Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| LAN controller | Realtek RTL8111H |
| Number of M.2 (M) slots | 2 |
| Processor socket | Socket AM4 |
| Cooling type | Passive |
| Motherboard chipset | AMD B550 |
| HDCP | Yes |
| Screws included | Yes |
| VGA (D-Sub) ports quantity | 0 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Model Chipset | B550 |
| Gaming | Nu |
| Format | ATX |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| BLUETOOTH | Nu |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Front panel connector | Yes |
| Number of CPU fan connectors | 2 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Motherboard form factor | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| 2nd M.2 largest key size | 22110 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Height | 35 mm |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| Number of storage drives supported | 6 |
| BIOS memory size | 128 Mbit |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| RAID levels | 0, 1, 10 |
| Number of chassis fan connectors | 3 |
| Number of EPS power connectors (8-pin) | 1 |
| Supported processor sockets | Socket AM4 |
| Number of water pump connectors | 1 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 22110 |
| Number of RGB LED pin headers | 5 |
| Maximum internal memory per slot | 32 GB |
| Package weight | 1.48 kg |
| MB-Format | ATX |
| PCI-Ex1 | 0 |
| RAM-Slots | 4 |
| Product colour | Dark brown |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Supported memory clock speeds | 3200,2933,2667,2400,2133 MHz |
| PCI Express x1 (Gen 3.x) slots | 4 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| USB Type-C | N/A |
| MB-Socket | AM5 |
| PCI-Ex16 | 5 |
| Producator | GIGABYTE |
| Garantie | 36 |
