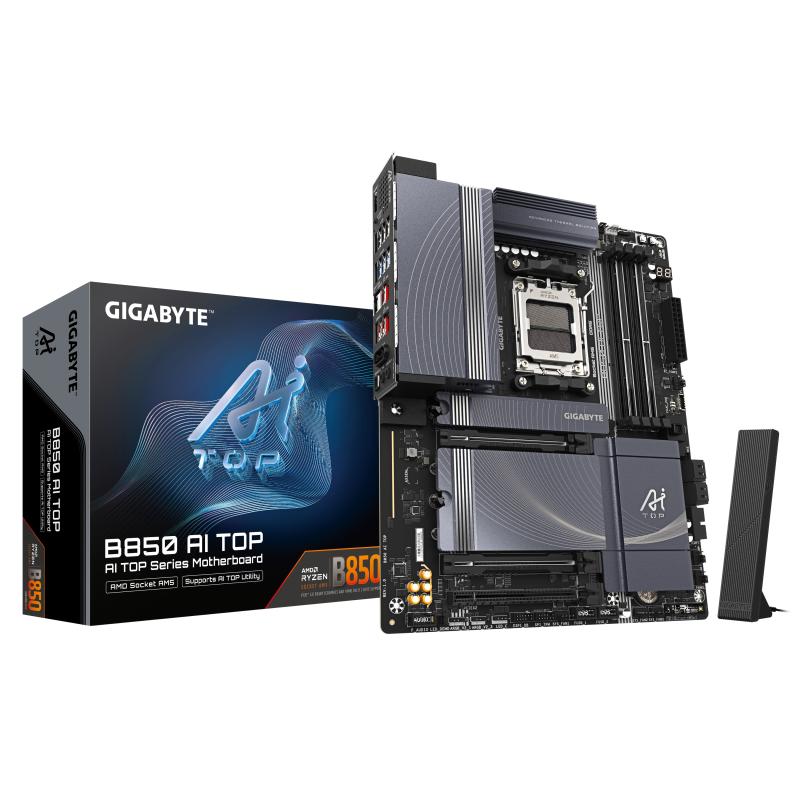

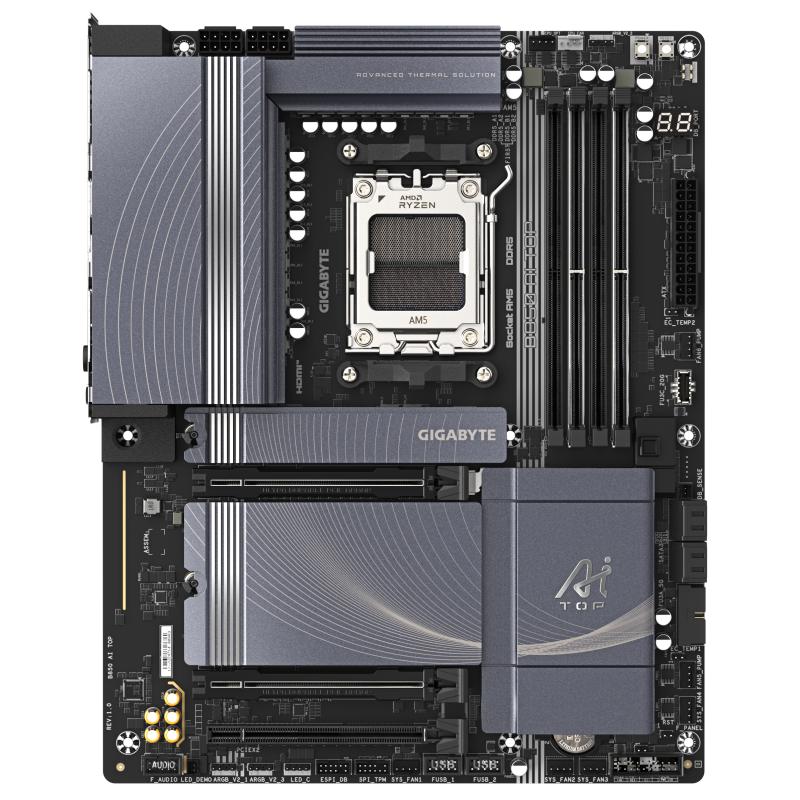

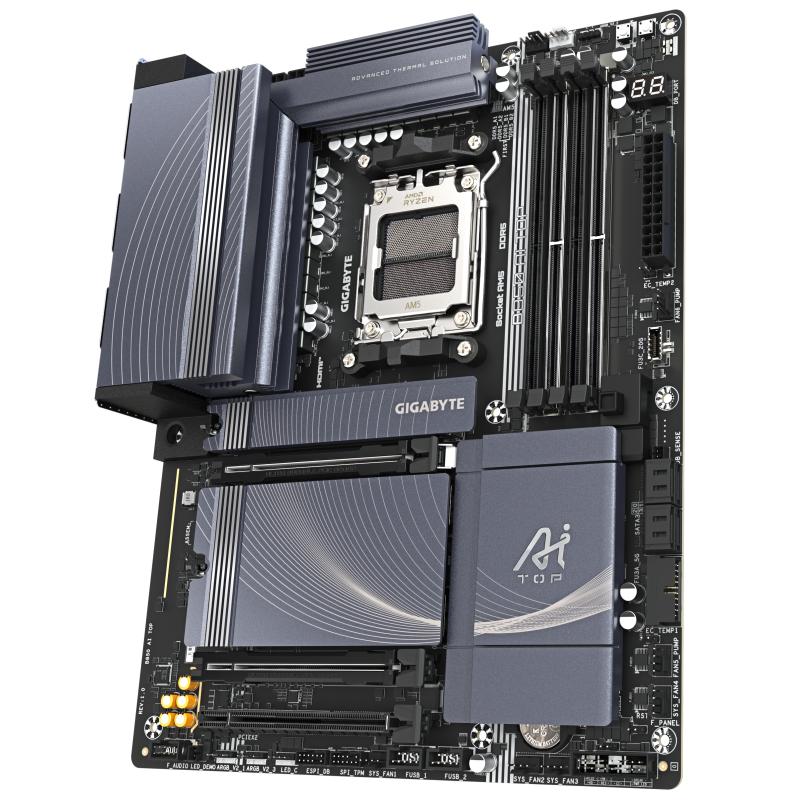

Placa de Baza GIGABYTE B850 AI TOP AM5, 4x DDR5,
De ce să alegi LEADtech.ro?
vezi detalii
În stoc
2.034,00 lei 2.420,00 lei
În stoc
Descriere
Placa de Baza GIGABYTE B850 AI TOP AM5, 4x DDR5, 1x USB TYPE-C 1x HDMI, 1x PCIE 5.0 x16 1x PCIE 5.0 x8, 1x PCIE 4.0 x16, 3x M.2, 4x SATA 6GB/s, ATX
Specificații
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| Onboard-CPU | No |
| Country of origin | China |
| RAID support | Yes |
| Component for | PC |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Headphone outputs | 1 |
| Processor manufacturer | AMD |
| Microphone in | Yes |
| Width | 305 mm |
| Depth | 244 mm |
| Bluetooth version | 5.4 |
| Products per shipping (inner) case | 1 pc(s) |
| Batteries included | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| HDCP | Yes |
| Screws included | Yes |
| Product colour | Brown |
| Package weight | 3 kg |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Model Chipset | B850 |
| Gaming | Nu |
| Format | ATX |
| Soclu Procesor | Socket AM5 |
| Tip Memorie | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 256 GB |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| BLUETOOTH | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 3 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| Front panel connector | Yes |
| Number of CPU fan connectors | 2 |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| WiFi-AP antenna jack | 2 |
| WLAN controller model | Realtek RTL8922AE |
| Motherboard form factor | ATX |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Power source type | ATX |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Height | 35 mm |
| Antenna included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| USB 3.2 Gen 2x2 connectors | 1 |
| 12V power connector | Yes |
| Clear CMOS button | Yes |
| ECC сompatibility | Non-ECC |
| Serial port headers | 1 |
| RAID levels | 0, 1, 10 |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Number of chassis fan connectors | 3 |
| Motherboard chipset | AMD B850 |
| Number of EPS power connectors (8-pin) | 1 |
| Audio Chip | Realtek ALC1220 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Supported memory clock speeds | 4400,4800,5200,8600 MHz |
| PCI Express x32 (Gen 5.x) slots | 2 |
| Weight | 2.69 kg |
| Producator | GIGABYTE |
| Garantie | 36 |
