CUDY 8 RJ-45 10/100/1000M PSE ports +2 RJ45 10/100/1000
De ce să alegi LEADtech.ro?
vezi detalii
În stoc
231,99 lei 346,99 lei
În stoc
Descriere

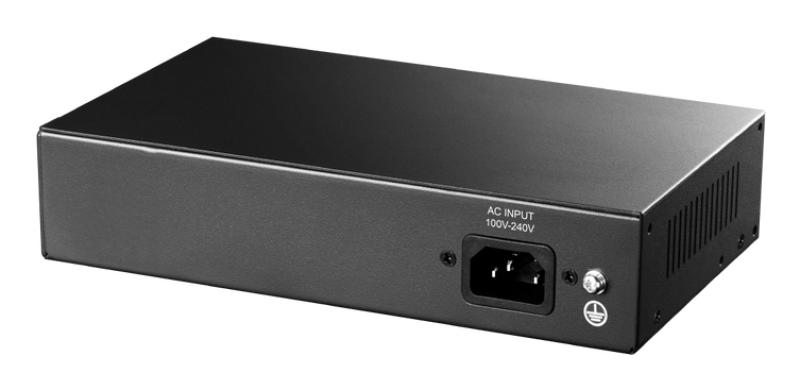

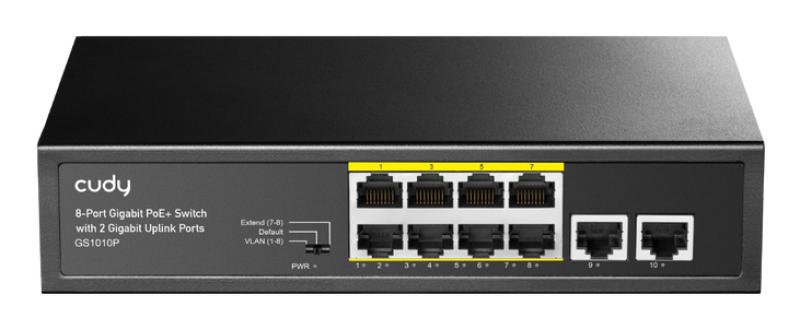

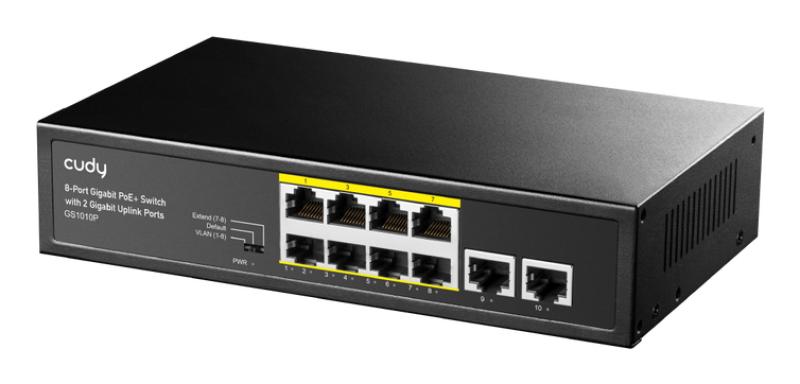

CUDY 8 RJ-45 10/100/1000M PSE ports +2 RJ45 10/100/1000 Uplink Port Unmanaged PoE+ Switch,VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF,, 802.3af/at standard, Aternative 1/2(+),3/6(-), Rack-mountable Steel Case, 120W Internal Power Supply
Specificații
Layer | Layer-2 |
---|---|
Stackable | No |
Rackable | No |
Management | Unmanaged |
PoE | Nu |
LAN-Port-Type | Gigabit |
LAN ports | 8 |
Redundant-PSU | No |
Weight | 630 g |
Storage relative humidity (H-H) | 5 – 90% |
Product colour | Black |
Quick start guide | Yes |
Plug and Play | Yes |
Jumbo frames support | Yes |
Height | 44 mm |
Housing material | Metal |
Power supply included | Yes |
Operating relative humidity (H-H) | 10 – 90% |
Cables included | AC |
Wall mountable | Yes |
AC input voltage | 100 – 240 V |
Power over Ethernet (PoE) | Yes |
Width | 220 mm |
Storage temperature (T-T) | -40 – 80 °C |
Rack mounting | Yes |
VLAN support | Yes |
Ethernet LAN data rates | 10,100 Mbit/s |
Power over Ethernet (PoE) ports quantity | 8 |
Depth | 150 mm |
Operating temperature (T-T) | -20 – 50 °C |
Power source | AC |
LED indicators | Activity, Link, Power |
Fanless | Yes |
Switching capacity | 20 Gbit/s |
Forwarding rate | 14.88 Mpps |
Power over Ethernet plus (PoE+) ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | 10 |
Uplink ports quantity | 2 |
Power over Ethernet (PoE) power per port | 30 W |
Store-and-forward | Yes |
Power connector | AC-in jack |
Number of VLANs | 8 |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
Total Power over Ethernet (PoE) budget | 120 W |
Cable types supported | Cat3, Cat5, Cat5e |
Packet buffer memory | 0.448 MB |
MAC address table | 2048 entries |
Porturi RJ 45 | 5-10 |
Viteza transfer | Gigabit |
Porturi SFP | N/A |
Montare in rack | Da |
Form factor | Desktop/Wall-Mounting |
Output voltage | 52 V |
Copper ethernet cabling technology | 100BASE-T |
Output current | 2.3 A |
Bandwidth | 20 Gbit/s |
Producator | CUDY |
Garantie | 24 |
